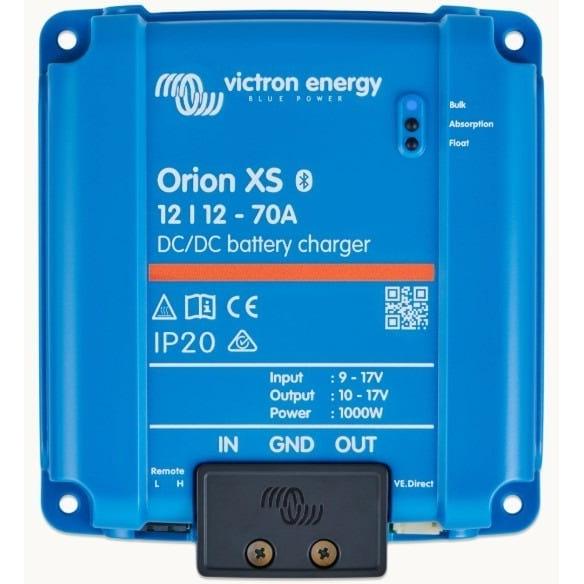

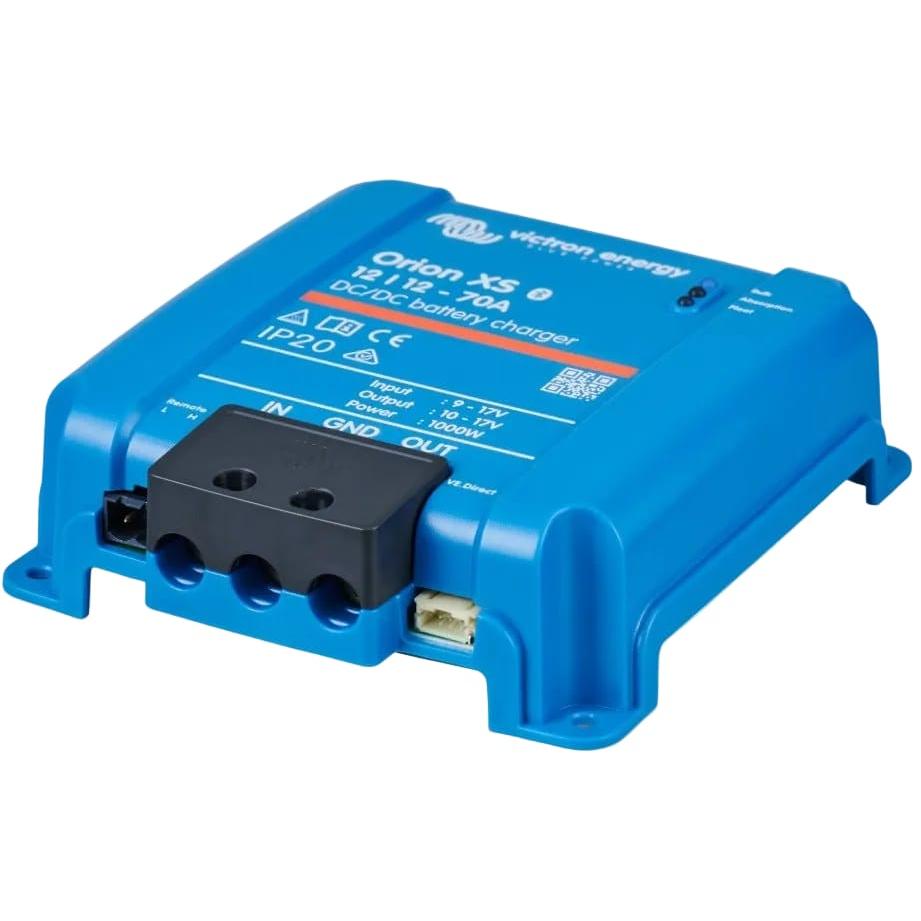

Victron Energy ORI121221040 Battery Chargers
For 12-volt dual-battery systems, delivering adjustable charging up to 70 amps with Bluetooth Smart, VE.Direct, smart alternator compatibility, and programmable charging profiles.
The Victron Orion XS 12/12-70A is a high-performance DC-DC battery charger designed for 12-volt vehicle, marine, RV, and off-grid auxiliary battery systems. It is built for dual-battery installations charged from an intelligent alternator, helping ensure controlled charging of the service battery while protecting the starter battery from discharge.
With adjustable charge current from 1 to 70 amps, programmable charging algorithms, and eight pre-programmed battery settings, the Orion XS 12/12-70 amp supports flexible installation across different battery types and system needs. Built-in Bluetooth Smart allows setup, monitoring, and software updates through the VictronConnect app, while VE.Direct enables wired integration with GX devices for advanced monitoring and control.
This model is especially useful for Euro 5 and Euro 6 vehicles with smart alternators, where alternator voltage can be too low for reliable auxiliary battery charging. Engine shutdown detection activates charging only when alternator power is available.
Key Features
- 12-volt input to 12-volt output DC-DC battery charger
- Adjustable charging current from 1 amp to 70 amps
- Output voltage adjustable from 10 volts to 17 volts
- Designed for dual-battery systems with intelligent alternators
- Smart alternator compatible with engine shutdown detection
- Adaptive 4-stage charge algorithm
- Fully programmable charging algorithms
- Eight pre-programmed battery settings
- Built-in Bluetooth Smart for VictronConnect setup and monitoring
- Instant Readout in VictronConnect for key data, warnings, and alarms
- VE.Smart Networking support for Vsense, Tsense, and Isense data
- VE.Direct port for wired GX device, PC, or other device connection
- DVCC support with compatible firmware and GX device
- Can be used as a power supply with output voltage set through VictronConnect
- Unlimited parallel connection capability to increase output current
- Screw terminal DC connections
Technical Specifications
- Model: Orion XS 12/12-70 amps
- Product type: DC-DC battery charger
- Input voltage range: 9 volts to 17 volts
- Output voltage adjustment range: 10 volts to 17 volts
- Output voltage tolerance: ±0.25% maximum
- Output voltage noise: 10 mV rms
- Input and output current setting range: 1 amp to 70 amps
- Maximum constant short-circuit current: 70 amps
- Continuous output power up to 40°C: 1000 watts
- Maximum efficiency: 98.5%
- No-load current consumption: Less than 100 mA
- Standby current consumption: Less than 1.5 mA
- Operating temperature range: -20°C to +60°C
- Temperature derating: 1.5% per °C above 40°C
- Humidity: 95%, non-condensing
- Maximum altitude: 2000 m
- Pollution degree: PD2
- Overvoltage category: OVC 1

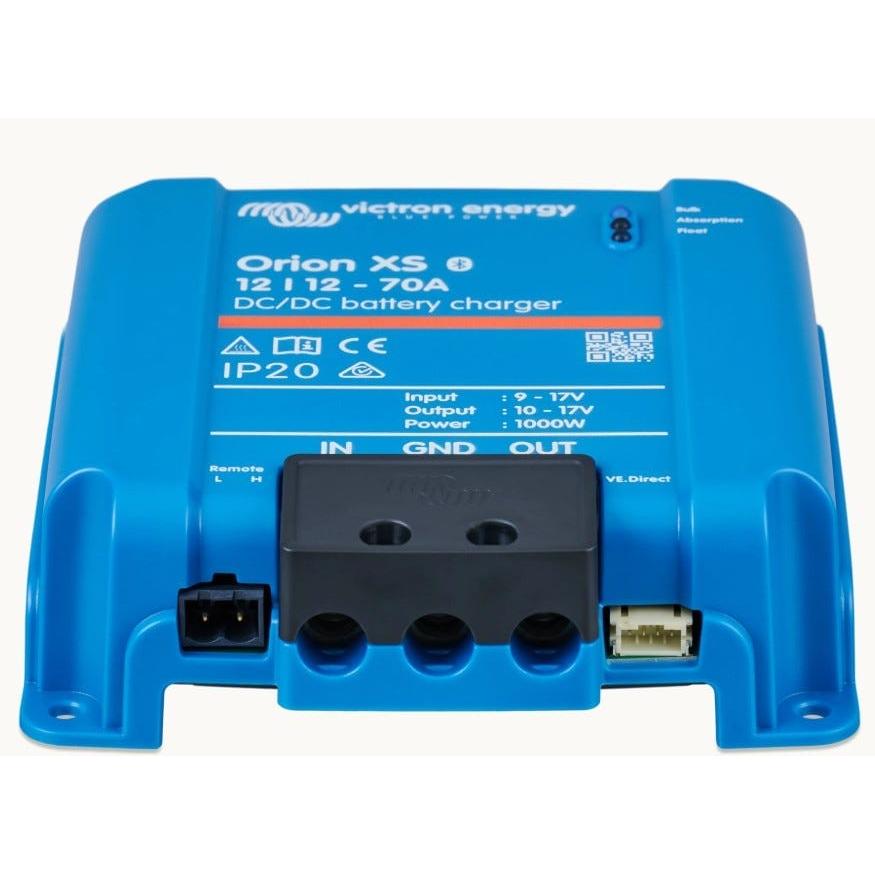

- DC connection: Screw terminals
- Maximum cable cross-section: 4 AWG, 25 mm²
- Weight: 0.340 kg, 0.74 pounds
- Dimensions H x W x D: 137.3 x 123.1 x 40 mm, 5.4 x 4.85 x 1.6 inches
- Protection category: IP20
- Safety standard: IEC 62477-1
- EMC standards: EN 300 328, EN 301 489-1, EN 301 489-17, FCC 15B, ICES-003
- Automotive directive: ECE R10-7
Applications
- RV auxiliary battery charging
- Marine dual-battery systems
- Van and camper electrical systems
- 12-volt service battery charging from a 12-volt starter battery
- Smart alternator vehicle charging systems
- Mobile power systems with long cable runs or voltage drop concerns
- DC power supply applications where adjustable output voltage is required
Ideal For
- Buyers needing a 70 amp DC-DC charger for a 12 volt auxiliary battery bank
- Vehicles with Euro 5 or Euro 6 smart alternators
- RV, van, and marine systems where alternator voltage may be insufficient
- Installations requiring app-based setup and monitoring
- Victron systems using VE.Direct, GX devices, or VE.Smart Networking
- Users who need scalable charging by connecting multiple units in parallel
Protection Features
- Input undervoltage protection with configurable lockout and restart values
- Low-temperature shutdown to help protect lithium batteries
- Overload protection
- Short-circuit protection
- Excessive temperature protection
- Output power reduction when maximum product temperature is reached
- Starter/input battery protection against deep discharge
- Engine shutdown detection to prevent drawing power when the alternator is not supplying power
System Compatibility
- Compatible with 12-volt input and 12-volt output battery systems
- Compatible with intelligent alternator systems
- Configurable through VictronConnect on Apple and Android smartphones, tablets, and other devices
- Supports VE.Smart Networking data from compatible devices such as BMV, SmartShunt, or Smart Battery Sense
- VE.Direct compatibility for connection to GX devices such as Cerbo GX or Ekrano GX
- DVCC compatibility requires Orion XS firmware v1.03 or later and Venus OS firmware v3.20 or later on the GX device
- Can receive Vsense, Tsense, and Isense data over VE.Smart Networking
- Synchronized charging is not supported
Check Before Ordering
- Confirm your system is 12-volt input and 12-volt output; this model is not for 24-volt output systems
- Confirm the required charge current is appropriate for your auxiliary battery bank and wiring
- This 12/12-70 amp model is rated IP20 and is intended for dry indoor installation only
- Verify cable size, fuse protection, mounting location, airflow, and installation clearances before installation

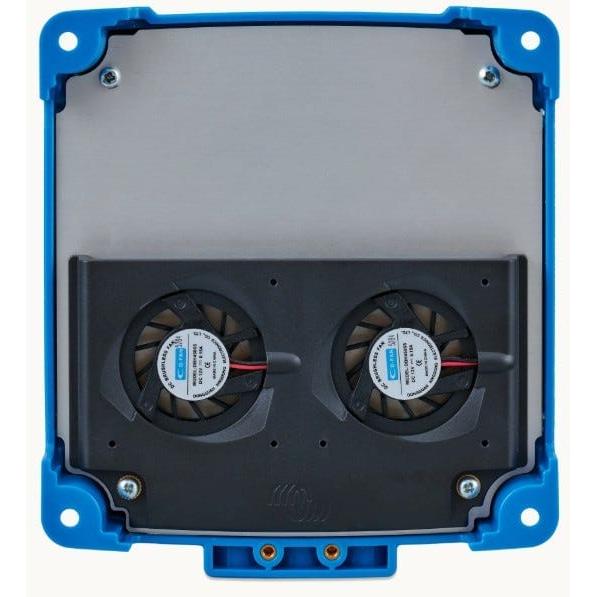

- Continuous output power is based on optimal cooling and proper mounting; limited airflow may cause earlier current derating
- Confirm firmware requirements when using DVCC with a GX device
- For lithium battery systems, confirm BMS remote on/off or control requirements before installation
- Use VictronConnect to configure charge settings for the connected battery type
