Download LiteratureJENSEN JAHD240BT MarineJAHD240BT 80W 2-Channel Bluetooth Amplifier The waterproof JAHD240BT is on the forefront of technology with integrated Bluetooth technology allowing users to stream their audio content using a Bluetooth enabled device. Now, users can take their personal music library with them on all of their adventures. To pair the device, simply press and hold the button for about four seconds to place the JAHD240BT in pairing mode. It will remain in pairing mode for two minutes, and the blue LED will flash quickly. With a Bluetooth enabled device search for, and connect to the amplifier to complete pairing. All playback and volume options are controlled by the users Bluetooth enabled device. The unit also deploys 80 watts maximum power giving your audio system plenty of fire power.Features: 80 watt max power (40 watt RMS) Bluetooth audio (AVRCP, A2DP) Waterproof (IPX6) Illuminated program button 4 Ohm - 8 Ohm stable Operating voltage: 10-18VDC Frequency response: 20Hz - 20KHz Red LED power indicator Epoxy potted encolsure Corrosion resistant (ASTM B117) WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Specifications:Bridgeable = NONE Channels - Available = NONE Waterproof Rating = NONE Watts = NONENormalized SKU: JAHD240BTUPC Code: 681787019579JENSEN JAHD240BT Literature Download  Owners Manual

Download LiteratureJBL Audio JBLMA754AM MarineMA754AM 4-Channel Amplifier - 75WThe marine A754 4-channel amplifier delivers a powerful 75-watt RMS to each of the front and rear speakers in a boat. You can also bridge the amp to 2-channel mode to drive a couple of subs with a 200-watt RMS or 3-channel mode to drive both a pair of full-range speakers and a subwoofer.Speaker-level inputs allow this amplifier to integrate into almost any system, even one using a marine factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow users to dial in the perfect roll-off to best suit speaker placement and cabin acoustics.Features: Compact size High and low-level input Variable crossover and bass boost Low noise and distortion Input Level Control Full on-board protection   Phase Switch RBC wired remote Class D amp technology Turn-on mode General Specifications: 4-channel marine amplifier 75 watts RMS x 4 at 4 ohms (100 watts RMS x 4 at 2 ohms) 200 watts RMS x 2 at 4 ohms in bridged mode (4-ohm stable in bridged mode) Variable high- and low-pass filters (32-320 Hz, 12 dB/octave) on front and rear channels Preamp and speaker-level inputs Preamp outputs Fuse rating 30A x 2 8-gauge power and ground leads recommended — wiring and hardware not included with amplifier Dimensions (W x H x D) 320mm x 51.3mm x 180mm (12-5/8” x 2-1/16" x 7-1/8”) What’s in the Box: One marine A754 4-channel amplifier 4 Bare wire-to-RCA adapters Four 30A ATO fuses (2 installed, 2 spare) Two JBL stickers Owner's Manual 4 Mounting screws (M4 x 53mm) 1 logo badge Normalized SKU: JBLMA754AMUPC Code: 050036396943JBL Audio JBLMA754AM Literature Download Quick Reference Guide Owners Manual

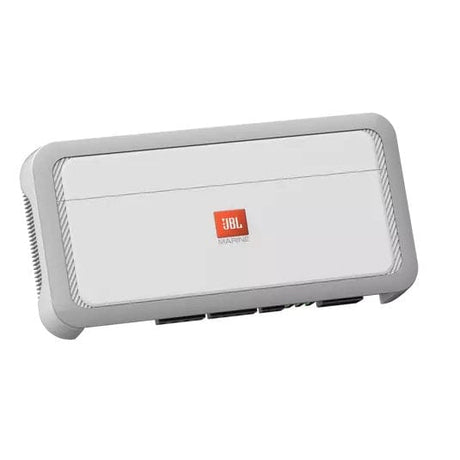

JBL Audio JBLMA5055AM MarineJBL MA5055AM Marine Amplifier 5 channelModel: MA5055AM The JBL marine amplifier features a low-profile chassis and a small overall footprint to fit in more vehicles where available space is limited. Speaker-level and low-level inputs allow the marine to integrate with both aftermarket and factory marine stereo systems. Unlike many amplifiers available at similar prices, the JBL marine amplifier features variable electronic crossovers and bass boost circuits allowing for precise system tuning and performance The marine amplifier has been engineered using Balanced Differential Inputs to ensure low noise and distortion even at high output levels. This also makes it far less susceptible to line induced radiated engine noise. When low-level inputs are used, this control adjusts the input sensitivity between 200mVrms and 4Vrms. When high-level inputs are used, this control adjusts the input sensitivity between 1Vrms and 22Vrms On-board circuitry protects the marine amplifier from shorts, high temperature, overvoltage and undervoltage. An LED indicator is provided to let you know when one of these conditions exists. This switch changes the input phase to inverted or non-inverted. This is especially helpful as part of system tuning based on the enclosure type and location in the boat. The RBC wired remote is an easy installation and can be mounted for convenient volume adjustment from driver’s seat. The JBL marine A5055 5channels subwoofer amplifier delivers 760-Watts RMS using a Class AB+D amplifier design to ensure high output and minimum current draw. Turn-on-mode - This switch changes DC to REM to adapt with low-level signals or high-level signals, this is especially helpful as part of remote turn-on lead of your installation more choice .A selectable "Turn on mode" can protect battery to avoid current drain, when you don’t expect turn on your amplifier. The marine A5055 5-channel amplifier delivers a powerful 50-Watts RMS to each of the front and rear speakers in your boat, and a pounding 500-Watts RMS to the subwoofer channel — a much smarter ratio of subwoofer-to-full-range power than what is typical in 5-channel amps. You can also bridge the amp to 3-channel mode to deliver 140-Watts RMS to your front speakers while driving your sub with 500-Watts RMS. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your marine's factory radio. Separate high-pass and low-pass crossovers on the front and rear channels allow you dial in the perfect roll off to best suit speaker placement and cabin acoustics. The subwoofer channel features a low-pass crossover, selectable bass boost, and phase switch to optimize subwoofer performance.Specifications Channels 5 channel marine amplifier Power 50 watts RMS x 4 + 320 watts RMS x 1 at 4 ohms75 watts RMS x 4 + 500 watts RMS x 1 at 2 ohms100 watts RMS x 2 bridged at 4 ohms + 500 watts RMS x 1 at 2 ohm What's in the Box: One marine A5055 five channel amplifier 4 Bare wire-to-RCA adapters Six 30A ATO fuses (3 installed, 3 spare) Remote bass control module 16.5' Remote control cable (RJ-25 plugs on both ends) 2 Self-tapping screws for remote (M3 x 15mm) 4 Mounting screws (M4 x 53mm) Owner's Manual Two JBL stickers 1 logo badge Normalized SKU: JBLMA5055AM

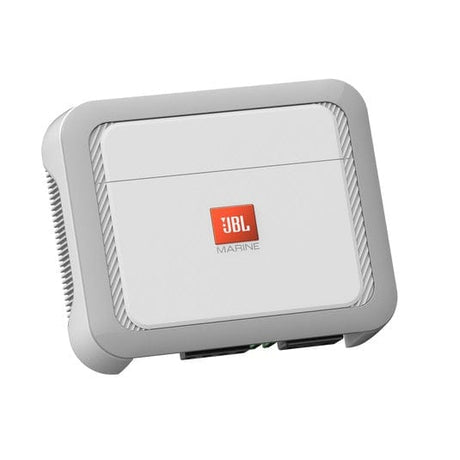

JBL Audio JBLMA600AM MarineJBL Marine A600 AmplifierModel: JBLMA600AM Compact size High and low level input Variable crossover and bass boost Low noise and distortion Input Level Control Full on-board protection Phase Switch RBC wired remote Class D amp technology Turn-on mode The JBL marine A600 mono subwoofer amplifier delivers 600-Watts RMS using a Class D amplifier design to ensure high output and minimum current draw. Speaker-level inputs allow this amplifier to integrate into almost any system, even one using your marine's factory radio. You can use the low-pass filter and variable bass boost to maximize the performance of your subwoofer and enclosure, while a phase switch ensures that the bass will blend well with your full-range speakers.What's in the Box: Marine A600 mono subwoofer marine amplifier 30A ATO fuses x 4 (2 installed, 2 spare) Bare wire-to-RCA adapters x 2 Remote bass control module 16.5’ Remote control cable (RJ-25 plugs on both ends) Self-tapping screws for remote (M3 x 15mm) x 2 Mounting screws (M4 x 53mm) x 4 Owners manual JBL Stickers x 2 Logo badge Normalized SKU: JBLMA600AMUPC Code: 050036396929

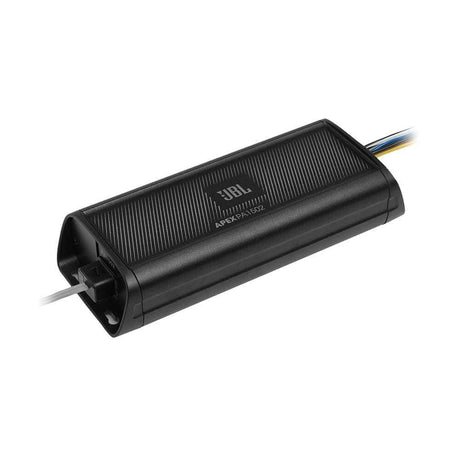

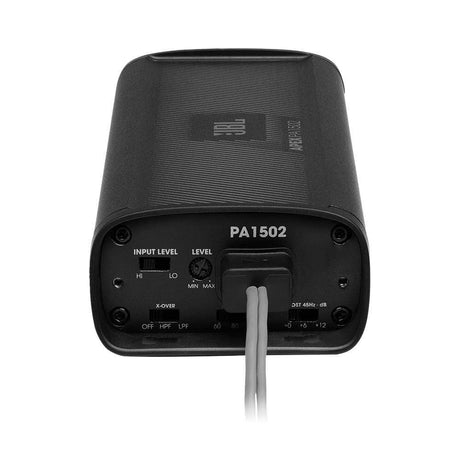

JBL Audio APEX PA1502 MarineAPEX PA1502 2 Channel Amplifier 150W x 2Designed to excel in extreme conditions (Waterproof, Dustproof, Freezeproof) these amps will thrive in the all weather. These amps are a game changer from their small size, robust power output, and pricing.  Suitable for small compact places, these amps will thrive in golf carts, side by sides, snowmobiles, motorcycles, and small water crafts (flats boats, tenders, jet skis, fresh and saltwater aluminum and fiberglass boats) among other applications.Features: RMS Power: 100Wx2@4-ohm/150Wx2 @ 2-ohm/300W x 1 @ 4-ohm Selectable Crossover: All-Pass, High-Pass or Low-Pass @ 60/80/120Hz Frequency Response: 20Hz to 20kHz Selectable Bass Boost: 0, 6, 12dB @ 45H (when low-pass selected) Signal to Noise Ratio: 85dB THD: <1% Fuse Rating: 25A Dimensions: 170mm x 85mm x 45mm Specifications:Bridgeable = NONE Channels - Available = 2 Waterproof Rating = Waterproof Watts = 150Wx2Normalized SKU: APEXPA1502UPC Code: 050036359115

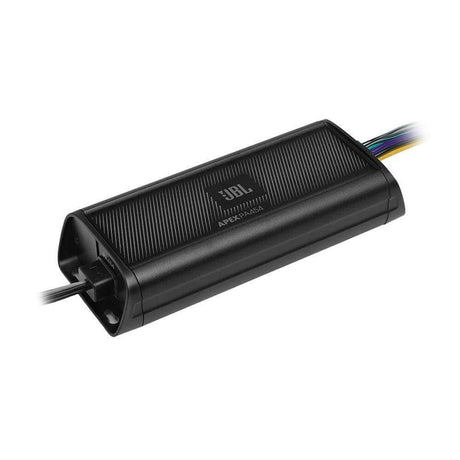

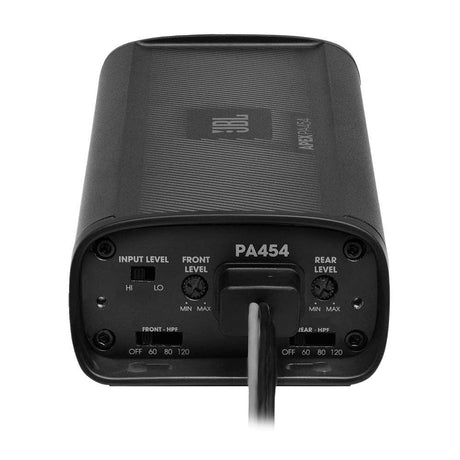

JBL Audio APEX PA454 MarineAPEX PA454 4 Channel Amplifier 45W x 4Designed to excel in extreme conditions (Waterproof, Dustproof, Freezeproof) these amps will thrive in the all weather. These amps are a game changer from their small size, robust power output, and pricing.  Suitable for small compact places, these amps will thrive in golf carts, side by sides, snowmobiles, motorcycles, and small water crafts (flats boats, tenders, jet skis, fresh and saltwater aluminum and fiberglass boats) among other applications.Features: RMS Power: 45Wx4@4-ohm Selectable Crossover Front/Rear: High-Pass @ Full/60/80/120Hz Frequency Response: 20Hz to 20kHz Signal to Noise Ratio: 85dB THD: <1% Fuse Rating: 15A Dimensions: 170mm x 85mm x 45mm Specifications:Bridgeable = NONE Channels - Available = 4 Waterproof Rating = Waterproof Watts = 45Wx4Normalized SKU: APEXPA454UPC Code: 050036359092
