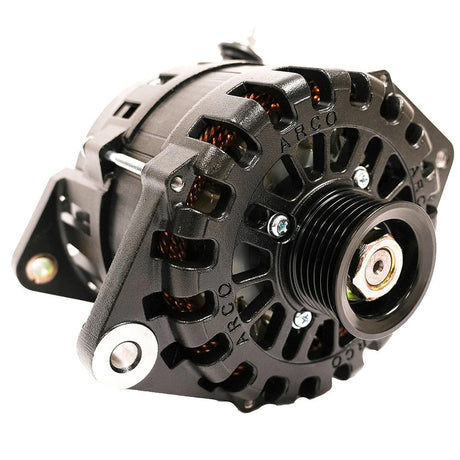

Download LiteratureARCO 4015-AZ1000 AlternatorsZeus A225S 1"-2" Single Foot Alternator with Isolated Ground, Terminal Block & Zeus High-Energy Alternator RegulatorZeus A225S 1"-2" Single Foot Alternator with Isolated Ground & Terminal BlockThe highest power output alternator in its size/class. Features: Engineered for high energy production. Suitable for marine, RV, military, and commercial applications. Rapidly charges large battery banks. Coolest operating temperatures for increased performance, running 8-20% cooler than incumbent alternators due to: Heat-shedding coatings Rectifier located on housing exterior Dual cooling fans OEM components Optimized for performance at idle speeds. Reduces the need for a generator by creating additional power with your engine. Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler for sustained amperage output. Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging. SAE J1171 Certified. Models are available with an internal/external voltage regulator. Proudly made in the U.S.A. Technical Specifications: Voltage - 12V Field Type - P Rotor Poles - 16 Stator Size - 130mm Frame Size - Small Weight - 12 lbs/5.4 kg Regulation - Internal/External (Internally regulated with adaptor for optional external regulation.) Output Voltage - 14.1v (Default) Finish - (Black) Cerakote or E-coating Cut-In RPM - 1,061 Alternator RPM Maximum Alt RPM - 19,000 Battery Post - M8 Thread Post, Side Mount Standard Pulley - 49K6 (6-groove, 49mm) Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5 Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included) Diodes - 6 positive, 6 negative, 50A Rated, Avalanche Max Output (Cold, 9,000 RPM) - 254 Amps Sustained Cruising Output (Hot, 6,000 RPM) - 187 Amps Sustained Idle Output (Hot, 3,000 RPM) - 157 Amps Max Continuous Operating Temperature - 110°C / 230°F Mounting Application:Replaces most domestic styles using a single 1" or 2" mounting foot (e.g., Motorola, Prestolite). Requires Standard single "V" belt upgrading to a double "V" belt or Serpentine SystemZeus High-Energy Alternator RegulatorARCO’s Zeus is the only high-energy external alternator regulator to feature Bluetooth and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you can access information on your system that you never had before. This information will enable you to regulate your system and optimize your battery charge and alternator output, resulting in a safer experience while protecting your energy system investment.Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature.Through the ARCO Zeus application, you are in good hands. Your data is automatically logged and can be shared with your technician to troubleshoot your system remotely. You can even import your remote technician’s configurations. Zeus optimizes battery charges for 12-48 volt systems. Whether you are using Lithium (LiFePo4) batteries or lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy-to-understand options.Zeus also takes into consideration the power of your engine and allows you to configure the alternator’s power take-off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with the press of a button, whereby it focuses the alternator’s performance on the creation of energy to replenish your battery bank quickly.Consistent with Zeus’ ease of use, Zeus is the only alternator regulator on the market that comes with alternator/battery harnesses and 2 thermistor harnesses, without an additional charge, saving users money and time from sourcing harnesses.Features: Secure Bluetooth connection Harnesses, Thermistors, and NMEA 2000 kit included Monitors the state of charge Can turn your engine into a dedicated generator with generator mode Pre-set battery libraries Data logging and sharing CAN bus and NMEA 2000-integrated networks Compatible with all voltage systems (12- 48V) IP66 & IP67 rated 2-Year warranty Technical Specifications: Enclosure dimensions without antenna - 8.2" x 5.9" x 2.4"  Enclosure dimensions with antenna - 8.2" x 7.5" x 2.4" Weight - 1.7 lbs In the Box: Zeus high-energy alternator regulator Battery wiring harness Alternator wiring harness 2 thermistors Normalized SKU: 4015AZ1000ARCO 4015-AZ1000 Literature Download Quick Reference Guide

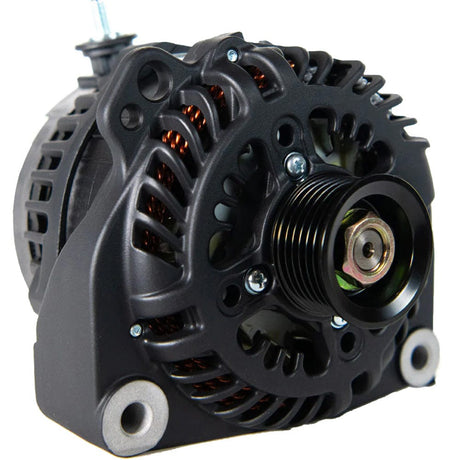

Download LiteratureARCO 4014-AZ1000 AlternatorsZeus A225S 1"-2" Alternator with Terminal Block & Zeus High-Energy Alternator RegulatorZeus A225S 1"-2" Alternator with Terminal BlockThe highest power output alternator in its size/class. Features: Engineered for High Energy Production. Suitable for Marine, RV, Military, and Commercial applications. Rapidly charges large battery banks. Coolest operating temperatures for increased performance. Runs 8 - 20% cooler than incumbent alternators due to: Heat-shedding coatings Rectifier located on housing exterior Dual cooling fans OEM Components Optimized for performance at idle speeds. Reduces the need for a generator by creating additional power with your engine. Unleash peak performance with E-Coat/Cerakote. Our advanced coating absorbs less heat, keeping the A225S cooler. This translates to more amperage for sustained periods. For maximum performance or lithium battery charging, use an ARCO Zeus Bluetooth alternator regulator. SAE J1171 Certified. Proudly made in the U.S.A. Technical Specifications: Voltage - 12V Field Type - P Rotor Poles - 16 Stator Size - 130mm Frame Size - Small Weight - 12lbs/6.7kg Regulation - External Only Output Voltage - 14.1V (default) Finish - (Black) Cerakote or E-coating Cut-In RPM - 1,061 Alternator RPM Maximum Alt RPM - 19,000 Battery Post - M8 Thread Post, Side Mount Standard Pulley - 49K6 (6-groove, 49mm) Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5 Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included) Diodes - 6 positive, 6 negative, 50A Rated, Avalanche Max Output (Cold, 9,000 RPM) - 254 Amps Sustained Cruising Output (Hot, 6,000 RPM) - 187 Amps Sustained Idle Output (Hot, 3,000 RPM) - 157 Amps Mounting Application:Replaces most domestic styles using a single 1 or 2” mounting foot (e.g., Motorola, Prestolite).Zeus High-Energy Alternator RegulatorARCO’s Zeus is the only high-energy external alternator regulator to feature Bluetooth and a native app (on IOS and Android) allowing for easy installation and configuration. With its intuitive interface, you can access information on your system that you never had before. This information will enable you to regulate your system and optimize your battery charge and alternator output, resulting in a safer experience while protecting your energy system investment.Zeus is the only alternator regulator that can read 2 shunts at a time (the battery shunt and alternator shunt). This feature enables Zeus to react to inputs from the battery current/temperature and alternator current/temperature.Through the ARCO Zeus application, you are in good hands. Your data is automatically logged and can be shared with your technician to troubleshoot your system remotely. You can even import your remote technician’s configurations. Zeus optimizes battery charges for 12-48 volt systems. Whether you are using Lithium (LiFePo4) batteries or lead-acid Deep Cycle batteries, Zeus has you covered with its pre-set battery libraries and configurable menus to optimize your charging profiles. Zeus manages a complex set of inputs by giving you easy-to-understand options.Zeus also takes into consideration the power of your engine and allows you to configure the alternator’s power take-off from the engine by managing the field, or duty. An advanced feature of Zeus is that it can turn your engine into a dedicated generator with the press of a button, whereby it focuses the alternator’s performance on the creation of energy to replenish your battery bank quickly.Consistent with Zeus’ ease of use, Zeus is the only alternator regulator on the market that comes with alternator/battery harnesses and 2 thermistor harnesses, without an additional charge, saving users money and time from sourcing harnesses.Features: Secure Bluetooth connection Harnesses, Thermistors, and NMEA 2000 kit included Monitors the state of charge Can turn your engine into a dedicated generator with generator mode Pre-set battery libraries Data logging and sharing CAN bus and NMEA 2000-integrated networks Compatible with all voltage systems (12- 48V) IP66 & IP67 rated 2-Year warranty Technical Specifications: Enclosure dimensions without antenna - 8.2" x 5.9" x 2.4"  Enclosure dimensions with antenna - 8.2" x 7.5" x 2.4" Weight - 1.7 lbs In the Box: Zeus high-energy alternator regulator Battery wiring harness Alternator wiring harness 2 thermistors Normalized SKU: 4014AZ1000ARCO 4014-AZ1000 Literature Download Quick Reference Guide

Download LiteratureARCO 4501 AlternatorsZeus 24V 7kW 3.15 Alternator with Isolated GroundThe ARCO Zeus 24v 7kW alternator generates extremely high amperage at cruising and higher RPMs. This alternator continuously generates over 3kW (109 Amps) at just under 3,000 alternator RPM and almost 6kW (218 Amps) at under 6,000 RPM. In real-world terms, a marine diesel engine at 1,500 RPM with a 2:1 pulley ratio generates over 3kW, and a Mercedes Sprinter at 1,800 RPM with a 3.21:1 ratio generates over 6kW!The ARCO Zeus 24v 7kW alternator turns on for cruising or at mid to higher RPMs, runs cooler, and provides more power than older designs that are larger and heavier. The newest generation of 24V performance has arrived.Competitor’s 24V alternators utilize a 12V rotor and field current which is less efficient and limits output at all RPMs. ARCO utilizes a native 24V rotor and field current. This results in our 24V alternator running cooler than competitor’s 24V alternators, having a direct impact on the alternator lifespan.Features: Engineered for high energy production. Suitable for marine, RV, military, and commercial applications. Rapidly charges large battery banks. Coolest operating temperatures for increased performance: Heat shedding coatings Rectifier located on housing exterior Dual cooling fans OEM components Optimized for performance at idle speeds. Reduces the need for a generator by creating additional power with your engine. Unleash peak performance with E-Coat/Cerakote, keeping the high amp alternator cooler for sustained amperage output. Use the ARCO Zeus Bluetooth Alternator Regulator for maximum performance or lithium battery charging. SAE J1171 Certified. Proudly made in the U.S.A. Technical Specifications: Voltage - 24v Field Type - P Rotor Poles - 16 Stator Size - 138mm Frame Size - Large Weight - 15.89lbs/7.2kg Regulation - External Only Finish - (Black) E-coating Cut-In RPM - 1,962 Alternator RPM Maximum Alt RPM - 19,000 Battery Post - M8 Thread Post, Side Mount Standard Pulley - 49K6 (6-groove, 49mm) Pulley Mount - 17mm diameter shaft, 25mm long, threaded M17 x 1.5 Pulley Hardware - M17 x 1.5 x 24mm nut, w/ 18mm ID x 29mm OD washer (Included) Diodes - 6 positive, 6 negative, 80A Rated, Avalanche Max Output (Cold, 9,000 RPM) at 27.5v - 284 Amps - 7,810 Watts – 11.2 kW PTO Sustained Cruising Output (Hot, 6,000 RPM) at 27.5v - 220 Amps - 6,050 Watts – 8.6kW PTO Sustained Idle Output (Hot, 3,000 RPM) at 27.5v - 50 Amps 1,375 Watts – 2kW PTO Max Continuous Operating Temperature - 100°C / 212°F Mounting Application:Replaces most small case styles using a 3.15” J180 saddle style mount (e.g., Hitachi, Lucas, Mitsubishi) Most Yanmars. Normalized SKU: 4501ARCO 4501 Literature Download Quick Reference Guide Owners Manual

Download LiteratureBalmar 97EHD-190-24-IG Alternators97EHD Series Alternator 190A, 24V, Saddle MountAlternator, 97EHD Series, 190A, 24V, Saddle Mount (Dual Foot), 4in, Deep Dual Vee Pulley*, Isolated Ground4″ J-180-Style Mounting;  Typical for Caterpillar, Cummins, Detroit Diesel & John Deere EnginesSpecifications: Volts: 24V Amps: 90A Mount: Dual Foot 4" This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: 97EHD19024IGBalmar 97EHD-190-24-IG Literature Download Quick Reference Guide

Download LiteratureBalmar 48-YSP-4JH-D AlternatorsPulley Kit for Yanmar 4JH3-TE, 4JH3-HTEAltMount®Serpentine Pulley Conversion Kit for Yanmar Diesel EnginesYanmar Engines Covered: 4JH3, -TE, -THEKit Includes: Three Ten-Groove (J10) Pulleys, Two J10, 48″ Circumference Serpentine Belts (one spare) & Mounting HardwareNote: If you specify an AT-200A Alternator, a longer belt length may be required.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: 48YSP4JHDUPC Code: 676205501057Balmar 48-YSP-4JH-D Literature Download Quick Reference Guide

Download LiteratureBalmar 48-WSP-44A AlternatorsPulley Kit for Westerbeke 44A, 44B, 44CAltMount® Serpentine Pulley Conversion Kit for Westerbeke Diesel EnginesWesterbeke Engines Covered: 44A, 44B, 44CKit Includes: Three Ten-Groove (J10) Pulleys, Two J10, 40″ Circumference Serpentine Belts (one spare) & Mounting HardwareNote: If you specify an AT-200A Alternator, a longer belt length may be required.This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: 48WSP44AUPC Code: 676205501330Balmar 48-WSP-44A Literature Download Quick Reference Guide

Download LiteratureBalmar 48-VSP-D2-A AlternatorsPulley Kit for Volvo D2-55, A, B, C, D, E, FAltMount® Serpentine Pulley Conversion Kit for Volvo Penta Diesel EnginesVolvo Penta Engines Covered: D2-55A, B, C, D, E, FKit Includes: Three Ten-Groove (J10) Pulleys, Two J10, 44″ Circumference Serpentine Belts (one spare) & Mounting HardwareNote: If you specify an AT-200A Alternator, a longer belt length may be required. Normalized SKU: 48VSPD2AUPC Code: 676205501262Balmar 48-VSP-D2-A Literature Download Quick Reference Guide

Download LiteratureBalmar 48-AM-106 AlternatorsPulley J10 for Altmount® AT Series Alternator 2.4" x 17mmAltMount® Serpentine PulleyTen-Groove (J10) Serpentine Pulley for AT-Series Alternators2.4″ Diameter, 17mm BoreThis product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Normalized SKU: 48AM106Balmar 48-AM-106 Literature Download Quick Reference Guide
