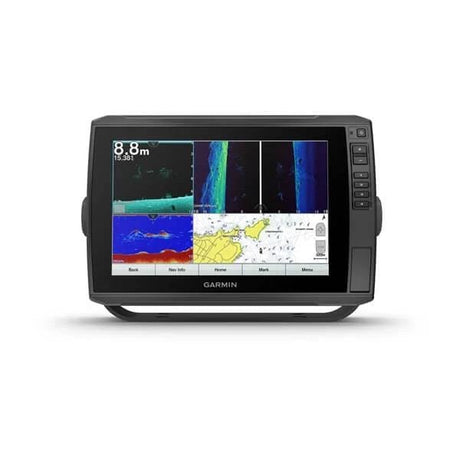

Garmin 010-02526-01 ChartplottersGarmin ECHOMAP™ Ultra 122sv With GT56UHD-TM TransducerModel: 010-02526-01 The keyed-assist 10" touchscreen puts fishfinding know-how at your fingertips. See crisp images of structure and fish in stunning detail. Navigate confidently with optional BlueChart® g3 charts and LakeVü g3 maps (sold separately). Manage your marine experience from nearly anywhere with the ActiveCaptain® app. Connect your boat to share data, sonar and charts with your other compatible devices. Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs. The sunlight-readable 10" touchscreen chartplotter/sonar combo features our worldwide basemap, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.ECHOMAP Ultra 102sv supports a variety of Garmin transducers, including Panoptix™ all-seeing sonar transducers and the Panoptix LiveScope™ LVS12 scanning sonar system (sold separately).The included GT56 transducer provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Experience unparalleled coverage and detail with optional BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics® data and Auto Guidance2 technology.Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app.If you have multiple compatible ECHOMAP Ultra 10" and 12" units or ECHOMAP Plus or UHD 7" and 9" units on your boat, you can share information — such as sonar, user data and charts — among them.Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw Community data and more1.Take control of the most powerful and efficient trolling motor available, route it to waypoints, follow tracks and more from the screen of your chartplotter.Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.Specifications General PHYSICAL DIMENSIONS 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm) DISPLAY SIZE 8.5" x 5.4"; 10" diagonal (21.7 cm x 13.6 cm; 25.4 cm diagonal) DISPLAY RESOLUTION 1280 x 800 pixels DISPLAY TYPE WXGA display WEIGHT 4.0 lbs (1.8 kg) WATER RATING IPX7 POLARIZED SUPPORT Yes POWER CONSUMPTION 26 W ANTENNA Internal or external over NMEA 2000 MOUNTING OPTIONS Bail or flush RECEIVER 10 Hz GARMIN MARINE NETWORK™ PORTS 2 (large connector) TRANSMIT POWER 600 W (RMS) / 4,000 W (peak to peak) Maps & Memory ACCEPTS DATA CARDS 2 microSD™ cards WAYPOINTS 5,000 TRACK LOG 50,000 points; 50 saved tracks ROUTES 100 Outdoor Recreation TIDE TABLES Yes Chartplotter Features GARMIN SONAR COMPATIBLE Yes SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) Yes SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) Yes SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS Yes GCV™ BLACK BOX SONAR SUPPORT Yes ACTIVECAPTAIN COMPATIBLE Yes SAILING FEATURES Yes Sonar Features & Specifications DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE Yes DUAL-BEAM (77/200 KHZ) SONAR CAPABLE Yes FREQUENCIES SUPPORTED CHIRP High-Wide: 150-240 kHz Ultra High-definition ClearVü: 800 kHz (760-880 kHz) CHIRP ClearVü: 455 kHz (425-845 kHz) Ultra High-definition SideVü: 1,200 kHz (1060-1170 kHz) CHIRP SONAR TECHNOLOGY Yes (Built-in) CLEARVü Yes with CHIRP (built-in) SIDEVü Yes with CHIRP (built-in) MAXIMUM DEPTH 2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions) BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) Yes WATER TEMPERATURE LOG AND GRAPH Yes SONAR RECORDING Yes SONAR HISTORY REWIND Yes Connections NMEA 2000® COMPATIBLE Yes TRANSDUCER PIN NUMBERS 1 — LVS sonar, 1 — 12 pin scanning sonar NMEA 0183 INPUT PORTS 1 NMEA 0183 OUTPUT PORTS 1 WIRELESS CONNECTIVITY Yes What's in the Box: ECHOMAP Ultra 102sv with worldwide basemap GT56UHD-TM transducer Power/data cable Tilt mount with quick release cradle Flush mount Protective cover Hardware Documentation Normalized SKU: 0100252601UPC Code: 753759264505

Garmin 010-02112-01 ChartplottersECHOMAP™ Ultra 106sv with GT54UHD-TM Transducer Equipped with Our Premium Sonar Capabilities 10” keyed-assist touchscreen combo includes all-in-one transducer for CHIRP traditional and Ultra High-Definition ClearVü and SideVü scanning sonars Built-in support for the full line of Panoptix™ sonars and the Panoptix LiveScope™ scanning sonar system, including Panoptix LiveScope LVS12 sonar Preloaded with Garmin exclusive BlueChart® g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics® data and Auto Guidance1 technology Share sonar, waypoints and routes with other ECHOMAP Ultra 10” and 12” units as well as ECHOMAP Plus 7” and 9” units Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish Built-in Wi-Fi® connectivity pairs with the free ActiveCaptain® app; NMEA 2000® connectivity and support for heading sensors, autopilots, digital switching, weather, FUSION-Link™ audio system and more The ECHOMAP Ultra 106sv combo, with its bright, sunlight-readable 10” keyed-assist touchscreen display, has all the tools you need for successful fishing. It includes an all-in-one transducer for CHIRP traditional and Ultra High-Definition ClearVü and SideVü scanning sonars. It also includes preloaded BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics data and Auto Guidance¹ technology.Panoptix Sonar SupportThe ECHOMAP Ultra 106sv combo also supports optional Panoptix LiveScope LVS12 sonar (no black boxes required) plus the full line of Panoptix all-seeing sonar transducers. It also supports the Panoptix LiveScope system.Best-in-market Preloaded Maps and ChartsIt comes preloaded with BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics data and Auto Guidance¹ technology that uses your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow.Quickdraw Contours to Create Your Own MapsInstantly create personalized fishing maps on-screen with 1’ contours as you fish. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™, our online community.Upgrade to the Best Maps on the WaterUpgrade the preloaded BlueChart g3 charts and LakeVü g3 maps to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra map. These add features such as elevation shading of bottom structure — which provides more 3-D relief than contours alone — satellite imagery and more.Share Sonar, Waypoints and RoutesHave more than one unit? You can share sonar, waypoints and routes with other ECHOMAP Ultra 10” and 12” units, as well as ECHOMAP Plus 7” and 9” units.The Ultimate Connected Boating AppBuilt in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications2 on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.Take Your ECHOMAP Ultra with YouWhen you’re off the water, it’s easy to keep your ECHOMAP Ultra combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit, because the cords plug directly into the quick-disconnect bail mount. This allows you to quickly install and remove your ECHOMAP Ultra from power and the mount.In The Box ECHOMAP Ultra 106sv with BlueChart g3 and LakeVü g3 for U.S. GT54UHD-TM transducer Power/data cable Tilt mount with quick release cradle Flush mount Protective cover Hardware Documentation Connections Garmin Marine Network™ Ports: 2 (large connector) Transducer Ports: 1 (12 Pin) NMEA 2000® Port: 1 NMEA 0183 Input Ports: 1 NMEA 0183 Output Ports: 1 Wireless Connectivity: Yes 1Auto Guidance is for planning purposes only and does not replace safe navigation operations2When paired with a compatible smartphone; see Garmin.com/bleWi-Fi is a registered trademark of the Wi-Fi Alliance.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100211201UPC Code: 753759212902

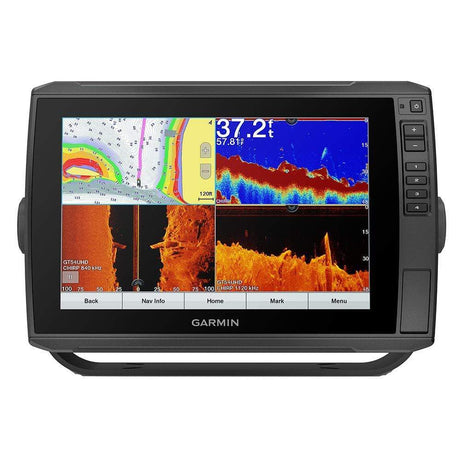

Garmin 010-02112-00 ChartplottersECHOMAP™ Ultra 106sv without Transducer Built-in Support for Our Premium Sonar Capabilities 10” keyed-assist touchscreen combo with built-in support for our premium sonar capabilities, including the Panoptix LiveScope™ scanning sonar system Preloaded with Garmin exclusive BlueChart® g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics® data and Auto Guidance1 technology Share sonar, waypoints and routes with other ECHOMAP Ultra 10” and 12” units as well as ECHOMAP Plus 7” and 9” units Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish Built-in Wi-Fi® connectivity pairs with the free ActiveCaptain® app NMEA 2000® connectivity and support for heading sensors, autopilots, digital switching, weather, FUSION-Link™ audio system and more The ECHOMAP Ultra 106sv combo, with its bright, sunlight-readable 10” keyed-assist touchscreen display, has all the fishing tools you need. It includes built-in support for our premium Garmin sonars and preloaded BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics data and Auto Guidance¹ technology. All transducers are sold separately.Our Premium Sonar SupportThe ECHOMAP Ultra 106sv combo includes built-in support for traditional CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars, Ultra High-Definition scanning sonar and Panoptix LiveScope LVS12 sonar (no black boxes required) plus the full line of Panoptix™ all-seeing sonar transducers. It also supports the Panoptix LiveScope system.Best-in-market Preloaded Maps and ChartsIt comes preloaded with BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics data and Auto Guidance¹ technology that uses your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow.Quickdraw Contours to Create Your Own MapsInstantly create personalized fishing maps on-screen with 1’ contours as you fish. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™, our online community.Upgrade to the Best Maps on the WaterUpgrade the preloaded BlueChart g3 charts and LakeVü g3 maps to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra maps. These add features such as elevation shading of bottom structure — which provides more 3-D relief than contours alone — satellite imagery and more.Share Sonar, Waypoints and RoutesHave more than one unit? You can share sonar, waypoints and routes with other ECHOMAP Ultra 10” and 12” units as well as ECHOMAP Plus 7” and 9” units.The Ultimate Connected Boating AppBuilt in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications² on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.Take Your ECHOMAP Ultra with YouWhen you’re off the water, it’s easy to keep your ECHOMAP Ultra combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit, because the cords plug directly into the quick-disconnect bail mount. This allows you to quickly install and remove your ECHOMAP Ultra from power and the mount.In The Box ECHOMAP Ultra 106sv with BlueChart g3 and LakeVü g3 for U.S. Power/data cable Tilt mount with quick release cradle 8-pin transducer to 12-pin sounder adapter cable Flush mount Protective cover Hardware Documentation Connections Garmin Marine Network™ Ports: 2 (large connector) Transducer Ports: 1 (12 Pin) NMEA 2000® Port: 1 NMEA 0183 Input Ports: 1 NMEA 0183 Output Ports: 1 Wireless Connectivity: Yes ¹Auto Guidance is for planning purposes only and does not replace safe navigation operations²When paired with a compatible smartphone; see Garmin.com/bleWi-Fi is a registered trademark of the Wi-Fi Alliance.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100211200UPC Code: 753759212896

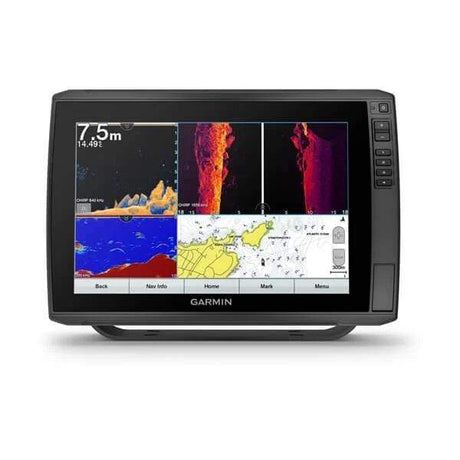

Garmin 010-02528-01 ChartplottersGarmin ECHOMAP™ Ultra 122sv With GT56UHD-TM TransducerModel: 010-02528-01 The keyed-assist 12" touchscreen puts fishfinding know-how at your fingertips. See crisp images of structure and fish in stunning detail. Navigate confidently with optional BlueChart® g3 charts and LakeVü g3 maps (sold separately). Manage your marine experience from nearly anywhere with the ActiveCaptain® app. Connect your boat to share data, sonar and charts with your other compatible devices. Explore your new favorite spot; create maps on the fly, and tailor them to fit your needs. The sunlight-readable 12" touchscreen chartplotter/sonar combo features our worldwide basemap, and the transducer bundle adds CHIRP traditional and Ultra High-Definition scanning sonars.ECHOMAP Ultra 122sv supports a variety of Garmin transducers, including Panoptix™ all-seeing sonar transducers and the Panoptix LiveScope™ LVS12 scanning sonar system (sold separately).The included GT56 transducer provides Garmin CHIRP traditional sonar and Ultra High-Definition ClearVü and SideVü scanning sonars. With three scanning sonar frequencies and 20% greater range for our UHD SideVü sonar, you’ll get top performance at all depths.High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Experience unparalleled coverage and detail with optional BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics® data and Auto Guidance2 technology.Create personalized fishing maps on-screen with 1’ contours. Keep the data to yourself, or share it with the Garmin Quickdraw™ Community on the Garmin Connect™ app3.If you have multiple compatible ECHOMAP Ultra 10" and 12" units or ECHOMAP Plus or UHD 7" and 9" units on your boat, you can share information — such as sonar, user data and charts — among them.Connect to your compatible autopilots, digital switching, weather, Fusion-Link™ audio system, media, VHF, AIS, engine data, heading sensors — such as the SteadyCast™ sensor — and more from one screen.Built-in Wi-Fi® connectivity pairs with the free all-in-one mobile app for access to the OneChart™ feature, smart notifications, software updates, Garmin Quickdraw Community data and more1.Take control of the most powerful and efficient trolling motor available4, route it to waypoints, follow tracks and more from the screen of your chartplotter.Keep your ECHOMAP Ultra safe and secure. Cords plug directly into the quick-disconnect bail mount, which allows you to quickly install and remove your unit.Specifications General PHYSICAL DIMENSIONS 13.4" x 9.0" x 3.9" (341 x 229 x 98 mm) DISPLAY SIZE 10.3" x 6.4"; 12.1" diagonal (26.1 cm x 16.3 cm; 30.7 cm diagonal) DISPLAY RESOLUTION 1280 x 800 pixels DISPLAY TYPE WXGA display WEIGHT 5.5 lbs (2.5 kg) WATER RATING IPX7 POLARIZED SUPPORT Yes POWER CONSUMPTION 26 W ANTENNA Internal or external over NMEA 2000 MOUNTING OPTIONS Bail or flush RECEIVER 10 Hz GARMIN MARINE NETWORK™ PORTS 2 (large connector) TRANSMIT POWER 600 W (RMS) / 4,000 W (peak to peak) Maps & Memory ACCEPTS DATA CARDS 2 microSD™ cards WAYPOINTS 5,000 TRACK LOG 50,000 points; 50 saved tracks ROUTES 100 Outdoor Recreation TIDE TABLES Yes Chartplotter Features GARMIN SONAR COMPATIBLE Yes SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) Yes SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) Yes SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS Yes GCV™ BLACK BOX SONAR SUPPORT Yes ACTIVECAPTAIN COMPATIBLE Yes SAILING FEATURES Yes Sonar Features & Specifications DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE Yes DUAL-BEAM (77/200 KHZ) SONAR CAPABLE Yes FREQUENCIES SUPPORTED CHIRP High-Wide: 150-240 kHz Ultra High-definition ClearVü: 800 kHz (760-880 kHz) CHIRP ClearVü: 455 kHz (425-845 kHz) Ultra High-definition SideVü: 1,200 kHz (1060-1170 kHz) CHIRP SONAR TECHNOLOGY Yes (Built-in) CLEARVü Yes with CHIRP (built-in) SIDEVü Yes with CHIRP (built-in) MAXIMUM DEPTH 2,300 ft @ 77 kHz, freshwater 1,100 ft @ 77 kHz, saltwater (depth capacity is dependent on water bottom type and other water conditions) BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) Yes WATER TEMPERATURE LOG AND GRAPH Yes SONAR RECORDING Yes SONAR HISTORY REWIND Yes Connections NMEA 2000® COMPATIBLE Yes TRANSDUCER PIN NUMBERS 1 — LVS sonar, 1 — 12 pin scanning sonar NMEA 0183 INPUT PORTS 1 NMEA 0183 OUTPUT PORTS 1 WIRELESS CONNECTIVITY Yes What's in the Box: ECHOMAP Ultra 122sv with worldwide basemap GT56UHD-TM transducer Power/data cable Tilt mount with quick release cradle Flush mount Protective cover Hardware Documentation Normalized SKU: 0100252801UPC Code: 753759264536

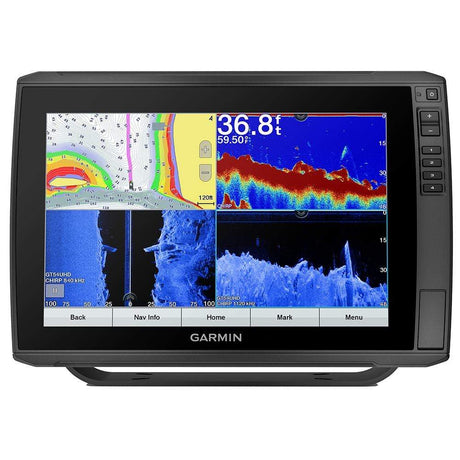

Garmin 010-02114-01 ChartplottersECHOMAP™ Ultra 126sv with GT54UHD-TM Transducer Equipped with Our Premium Sonar Capabilities 12” keyed-assist touchscreen combo includes all-in-one transducer for CHIRP traditional and Ultra High-Definition ClearVü and SideVü scanning sonars Built-in support for the full line of Panoptix™ sonars and the Panoptix LiveScope™ scanning sonar system, including Panoptix LiveScope LVS12 sonar Preloaded with Garmin exclusive BlueChart® g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics® data and Auto Guidance1 technology Share sonar, waypoints and routes with other ECHOMAP Ultra 10” and 12” units as well as ECHOMAP Plus 7” and 9” units Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish Built-in Wi-Fi® connectivity pairs with the free ActiveCaptain® app; NMEA 2000® connectivity and support for heading sensors, autopilots, digital switching, weather, FUSION-Link™ audio system and more The ECHOMAP Ultra 126sv combo, with its bright, sunlight-readable 12” keyed-assist touchscreen display, has all the tools you need for successful fishing. It includes an all-in-one transducer for CHIRP traditional and Ultra High-Definition ClearVü and SideVü scanning sonars. It also includes preloaded BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics data and Auto Guidance1 technology.Panoptix Sonar SupportThe ECHOMAP Ultra 126sv combo also supports optional Panoptix LiveScope LVS12 sonar (no black boxes required) plus the full line of Panoptix all-seeing sonar transducers. It also supports the Panoptix LiveScope system.Best-in-market Preloaded Maps and ChartsIt comes preloaded with BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics data and Auto Guidance¹ technology that uses your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow.Quickdraw Contours to Create Your Own MapsInstantly create personalized fishing maps on-screen with 1’ contours as you fish. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™, our online community.Upgrade to the Best Maps on the WaterUpgrade the preloaded BlueChart g3 charts and LakeVü g3 maps to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra map. These add features such as elevation shading of bottom structure — which provides more 3-D relief than contours alone — satellite imagery and more.Share Sonar, Waypoints and RoutesHave more than one unit? You can share sonar, waypoints and routes with other ECHOMAP Ultra 10” and 12” units, as well as ECHOMAP Plus 7” and 9” units.The Ultimate Connected Boating AppBuilt in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications² on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.Take Your ECHOMAP Ultra with YouWhen you’re off the water, it’s easy to keep your ECHOMAP Ultra combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit, because the cords plug directly into the quick-disconnect bail mount. This allows you to quickly install and remove your ECHOMAP Ultra from power and the mount.In The Box ECHOMAP Ultra 126sv with BlueChart g3 and LakeVü g3 for U.S. GT54UHD-TM transducer Power/data cable Tilt mount with quick release cradle Flush mount Protective cover Hardware Documentation Connections Garmin Marine Network™ Ports: 2 (large connector) Transducer Ports: 1 (12 Pin) NMEA 2000® Port: 1 NMEA 0183 Input Ports: 1 NMEA 0183 Output Ports: 1 Wireless Connectivity: Yes 1Auto Guidance is for planning purposes only and does not replace safe navigation operations2When paired with a compatible smartphone; see Garmin.com/bleWi-Fi is a registered trademark of the Wi-Fi Alliance.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100211401UPC Code: 753759212940

Garmin 010-02114-00 ChartplottersECHOMAP™ Ultra 126sv without Transducer Built-in Support for Our Premium Sonar Capabilities 12” keyed-assist touchscreen combo with built-in support for our premium sonar capabilities, including the Panoptix LiveScope™ scanning sonar system Preloaded with Garmin exclusive BlueChart® g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics® data and Auto Guidance1 technology Share sonar, waypoints and routes with other ECHOMAP Ultra 10” and 12” units as well as ECHOMAP Plus 7” and 9” units Built-in Quickdraw Contours mapping software instantly creates personalized fishing maps on-screen with 1’ contours as you fish Built-in Wi-Fi® connectivity pairs with the free ActiveCaptain® app NMEA 2000® connectivity and support for heading sensors, autopilots, digital 1Auto Guidance is for planning purposes only and does not replace safe navigation operations2When paired with a compatible smartphone; see Garmin.com/bleWi-Fi is a registered trademark of the Wi-Fi Alliance. Switching, weather, FUSION-Link™ audio system and more The ECHOMAP Ultra 126sv combo, with its bright, sunlight-readable 12” keyed-assist touchscreen display, has all the fishing tools you need. It includes built-in support for our premium Garmin sonars and preloaded BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics data and Auto Guidance1 technology. All transducers are sold separately.Our Premium Sonar SupportThe ECHOMAP Ultra 126sv combo includes built-in support for traditional CHIRP, CHIRP ClearVü and CHIRP SideVü scanning sonars, Ultra High-Definition scanning sonar and Panoptix LiveScope LVS12 sonar (no black boxes required) plus the full line of Panoptix™ all-seeing sonar transducers. It also supports the Panoptix LiveScope system.Best-in-market Preloaded Maps and ChartsIt comes preloaded with BlueChart g3 coastal charts and LakeVü g3 inland maps — both with integrated Navionics data and Auto Guidance¹ technology that uses your desired depth and overhead clearance to easily calculate routes and see a suggested path to follow.Quickdraw Contours to Create Your Own MapsInstantly create personalized fishing maps on-screen with 1’ contours as you fish. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™, our online community.Upgrade to the Best Maps on the WaterUpgrade the preloaded BlueChart g3 charts and LakeVü g3 maps to optional premium BlueChart g3 Vision charts and LakeVü g3 Ultra maps. These add features such as elevation shading of bottom structure — which provides more 3-D relief than contours alone — satellite imagery and more.Share Sonar, Waypoints and RoutesHave more than one unit? You can share sonar, waypoints and routes with other ECHOMAP Ultra 10” and 12” units as well as ECHOMAP Plus 7” and 9” units.The Ultimate Connected Boating AppBuilt in Wi-Fi gives you access to the free all-in-one ActiveCaptain app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications² on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.Take Your ECHOMAP Ultra with YouWhen you’re off the water, it’s easy to keep your ECHOMAP Ultra combo safe and secure. You don’t have to mess with plugging and unplugging wires from the unit, because the cords plug directly into the quick-disconnect bail mount. This allows you to quickly install and remove your ECHOMAP Ultra from power and the mount.In The Box ECHOMAP Ultra 126sv with BlueChart g3 and LakeVü g3 for U.S. Power/data cable Tilt mount with quick release cradle 8-pin transducer to 12-pin sounder adapter cable Flush mount Protective cover Hardware Documentation Connections Garmin Marine Network™ Ports: 2 (large connector) Transducer Ports: 1 (12 Pin) NMEA 2000® Port: 1 NMEA 0183 Input Ports: 1 NMEA 0183 Output Ports: 1 Wireless Connectivity: Yes 1Auto Guidance is for planning purposes only and does not replace safe navigation operations2When paired with a compatible smartphone; see Garmin.com/bleWi-Fi is a registered trademark of the Wi-Fi Alliance.WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100211400UPC Code: 753759212933

Garmin 010-02879-01/LIVESCOPE ChartplottersGarmin ECHOMAP™ Ultra 2 102sv 10" Chartplotters with GT56UHD-TM Transducer LiveScope Plus bundleModel: 010-02879-01/LIVESCOPE Plus SUPPORTS LIVESCOPE™ SONAR1 AND MORE WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2 CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.1LiveScope™ System sonar transducer sold separately 2Via one-to-one unit wireless connection only 3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters 4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotterSpecifications General DIMENSION 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm) WEIGHT 4.0 lbs (1.8 kg) WATERPROOF IPX7 TOUCHSCREEN Yes DISPLAY TYPE WXGA, IPS DISPLAY SIZE 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal) DISPLAY RESOLUTION 1280 x 800 pixels MOUNTING OPTIONS Bail or flush INPUT Touchscreen with Keyed Assist Maps & Memory ACCEPTS DATA CARDS 2 microSD cards WAYPOINTS 5000 TRACK POINTS 50,000 TRACKS 50 saved tracks NAVIGATION ROUTES 100 Sensors GPS Yes GLONASS Yes GALILEO Yes BEIDOU Yes HAS BUILT-IN RECEIVER Yes RECEIVER 10 Hz NMEA 2000 COMPATIBLE Yes NMEA 0183 COMPATIBLE Yes SUPPORTS WAAS Yes SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes Built-in Maps BUILT-IN AUTO GUIDANCE+ Yes GARMIN NAVIONICS+ INLAND & COASTAL No TIDE TABLES No Optional Map Support BLUECHART G3 Yes BLUECHART G3 VISION Yes LAKEVü G3 Yes LAKEVü G3 ULTRA Yes GARMIN NAVIONICS+™ Yes GARMIN NAVIONICS VISION+™ Yes TOPO 100K Yes STANDARD MAPPING Yes GARMIN QUICKDRAW CONTOURS Yes Electrical Features POWER INPUT 9 to 18 Vdc TYPICAL CURRENT DRAW AT 12 VDC 2.3 A MAXIMUM CURRENT DRAW AT 12 VDC 5.0 A MAXIMUM POWER USAGE AT 10 VDC 34 W Connections NMEA 2000® PORTS 1 GARMIN MARINE NETWORK PORTS 2 (large connector) 12-PIN TRANSDUCER PORTS 12-pin scanning sonar ANT+ (CONNECTIVITY) Yes GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes Sonar Features DISPLAYS SONAR Yes POWER OUTPUT 600 watt TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) CLEARVü built-in 260/455/800/1000/1200 kHz SIDEVü built-in 260/455/800/1000/1200 kHz PANOPTIX™ SONAR Yes LIVESCOPE Yes What's in the Box: ECHOMAP Ultra 102sv Power/data cable Bail mount with quick release cradle Protective sun cover GT56UHD-TM transducer Hardware Documentation Livescope Plus Normalized SKU: 0100287901/LIVESCOPE

Garmin 010-02880-01LSP ChartplottersGarmin ECHOMAP™ Ultra 2 106sv 10" Chartplotter LIVESCOPE Plus Bundle with GT56UHD-TM Transducer; Includes Garmin Navionics+™ U.S. Inland & Coastal MappingModel: 010-02880-01/LIVESCOPE Plus SUPPORTS LIVESCOPE™ SONAR1 AND MORE WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2 CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.1LiveScope™ System sonar transducer sold separately 2Via one-to-one unit wireless connection only 3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters 4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotterSpecifications General DIMENSION 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm) WEIGHT 4.0 lbs (1.8 kg) WATERPROOF IPX7 TOUCHSCREEN Yes DISPLAY TYPE WXGA, IPS DISPLAY SIZE 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal) DISPLAY RESOLUTION 1280 x 800 pixels MOUNTING OPTIONS Bail or flush INPUT Touchscreen with Keyed Assist Maps & Memory ACCEPTS DATA CARDS 2 microSD cards WAYPOINTS 5000 TRACK POINTS 50,000 TRACKS 50 saved tracks NAVIGATION ROUTES 100 Sensors GPS Yes GLONASS Yes GALILEO Yes BEIDOU Yes HAS BUILT-IN RECEIVER Yes RECEIVER 10 Hz NMEA 2000 COMPATIBLE Yes NMEA 0183 COMPATIBLE Yes SUPPORTS WAAS Yes SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes Built-in Maps BUILT-IN AUTO GUIDANCE+ Yes GARMIN NAVIONICS+ INLAND & COASTAL Garmin Navionics+™ U.S. Inland & Coastal Mapping TIDE TABLES yes Optional Map Support BLUECHART G3 Yes BLUECHART G3 VISION Yes LAKEVü G3 Yes LAKEVü G3 ULTRA Yes GARMIN NAVIONICS+™ Yes GARMIN NAVIONICS VISION+™ Yes TOPO 100K Yes STANDARD MAPPING Yes GARMIN QUICKDRAW CONTOURS Yes Electrical Features POWER INPUT 9 to 18 Vdc TYPICAL CURRENT DRAW AT 12 VDC 2.3 A MAXIMUM CURRENT DRAW AT 12 VDC 5.0 A MAXIMUM POWER USAGE AT 10 VDC 34 W Connections NMEA 2000® PORTS 1 GARMIN MARINE NETWORK PORTS 2 (large connector) 12-PIN TRANSDUCER PORTS 12-pin scanning sonar ANT+ (CONNECTIVITY) Yes GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes Sonar Features DISPLAYS SONAR Yes POWER OUTPUT 600 watt TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) CLEARVü built-in 260/455/800/1000/1200 kHz SIDEVü built-in 260/455/800/1000/1200 kHz PANOPTIX™ SONAR Yes LIVESCOPE Yes What's in the Box: ECHOMAP Ultra 106sv; Includes Garmin Navionics+™ U.S. Inland & Coastal Mapping Power/data cable Bail mount with quick release cradle Protective sun cover GT56UHD-TM transducer Hardware Documentation LIVESCOPE Plus Normalized SKU: 0100288001LSP

Garmin 010-02880-00LSP ChartplottersGarmin ECHOMAP™ Ultra 2 106sv 10" Chartplotters without Transducer; Includes Garmin Navionics+™ U.S. Inland & Coastal MappingModel: 010-02880-00/LIVESCOPE Plus SUPPORTS LIVESCOPE™ SONAR1 AND MORE WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2 CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.1LiveScope™ System sonar transducer sold separately 2Via one-to-one unit wireless connection only 3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters 4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotterSpecifications General DIMENSION 11.6" x 7.7" x 3.9" (29.5 x 19.5 x 9.8 cm) WEIGHT 4.0 lbs (1.8 kg) WATERPROOF IPX7 TOUCHSCREEN Yes DISPLAY TYPE WXGA, IPS DISPLAY SIZE 8.5" x 5.4"; 10" diagonal (21.7 x 13.6 cm; 25.4 cm diagonal) DISPLAY RESOLUTION 1280 x 800 pixels MOUNTING OPTIONS Bail or flush INPUT Touchscreen with Keyed Assist Maps & Memory ACCEPTS DATA CARDS 2 microSD cards WAYPOINTS 5000 TRACK POINTS 50,000 TRACKS 50 saved tracks NAVIGATION ROUTES 100 Sensors GPS Yes GLONASS Yes GALILEO Yes BEIDOU Yes HAS BUILT-IN RECEIVER Yes RECEIVER 10 Hz NMEA 2000 COMPATIBLE Yes NMEA 0183 COMPATIBLE Yes SUPPORTS WAAS Yes SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes Built-in Maps BUILT-IN AUTO GUIDANCE+ Yes GARMIN NAVIONICS+ INLAND & COASTAL Garmin Navionics+™ U.S. Inland & Coastal Mapping TIDE TABLES yes Optional Map Support BLUECHART G3 Yes BLUECHART G3 VISION Yes LAKEVü G3 Yes LAKEVü G3 ULTRA Yes GARMIN NAVIONICS+™ Yes GARMIN NAVIONICS VISION+™ Yes TOPO 100K Yes STANDARD MAPPING Yes GARMIN QUICKDRAW CONTOURS Yes Electrical Features POWER INPUT 9 to 18 Vdc TYPICAL CURRENT DRAW AT 12 VDC 2.3 A MAXIMUM CURRENT DRAW AT 12 VDC 5.0 A MAXIMUM POWER USAGE AT 10 VDC 34 W Connections NMEA 2000® PORTS 1 GARMIN MARINE NETWORK PORTS 2 (large connector) 12-PIN TRANSDUCER PORTS 12-pin scanning sonar ANT+ (CONNECTIVITY) Yes GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes Sonar Features DISPLAYS SONAR Yes POWER OUTPUT 600 watt TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) CLEARVü built-in 260/455/800/1000/1200 kHz SIDEVü built-in 260/455/800/1000/1200 kHz PANOPTIX™ SONAR Yes LIVESCOPE Yes What's in the Box: ECHOMAP Ultra 106sv; Includes Garmin Navionics+™ U.S. Inland & Coastal Mapping Power/data cable Bail mount with quick release cradle Protective sun cover 8-pin transducer to 12-pin sounder adapter cable Hardware Documentation Normalized SKU: 0100288000LSP

Garmin 010-02881-01LSP ChartplottersGarmin ECHOMAP™ Ultra 2 122sv 12" Chartplotter LIVESCOPE Plus Bundle with GT56UHD-TM TransducerModel: 010-02881-01/LIVESCOP Plus SUPPORTS LIVESCOPE™ SONAR1 AND MORE WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2 CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.1LiveScope™ System sonar transducer sold separately 2Via one-to-one unit wireless connection only 3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters 4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotterSpecifications General DIMENSION 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm) WEIGHT 5.5 lbs (2.5 kg) WATERPROOF IPX7 TOUCHSCREEN Yes DISPLAY TYPE WXGA, IPS DISPLAY SIZE 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal) DISPLAY RESOLUTION 1280 x 800 pixels MOUNTING OPTIONS Bail or flush INPUT Touchscreen with Keyed Assist Maps & Memory ACCEPTS DATA CARDS 2 microSD cards WAYPOINTS 5000 TRACK POINTS 50,000 TRACKS 50 saved tracks NAVIGATION ROUTES 100 Sensors GPS Yes GLONASS Yes GALILEO Yes BEIDOU Yes HAS BUILT-IN RECEIVER Yes RECEIVER 10 Hz NMEA 2000 COMPATIBLE Yes NMEA 0183 COMPATIBLE Yes SUPPORTS WAAS Yes SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes Built-in Maps BUILT-IN AUTO GUIDANCE+ Yes GARMIN NAVIONICS+ INLAND & COASTAL No TIDE TABLES No Optional Map Support BLUECHART G3 Yes BLUECHART G3 VISION Yes LAKEVü G3 Yes LAKEVü G3 ULTRA Yes GARMIN NAVIONICS+™ Yes GARMIN NAVIONICS VISION+™ Yes TOPO 100K Yes STANDARD MAPPING Yes GARMIN QUICKDRAW CONTOURS Yes Electrical Features POWER INPUT 9 to 18 Vdc TYPICAL CURRENT DRAW AT 12 VDC 2.5 A MAXIMUM CURRENT DRAW AT 12 VDC 5.0 A MAXIMUM POWER USAGE AT 10 VDC 36 W Connections NMEA 2000® PORTS 1 GARMIN MARINE NETWORK PORTS 2 (large connector) 12-PIN TRANSDUCER PORTS 12-pin scanning sonar ANT+ (CONNECTIVITY) Yes GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes Sonar Features DISPLAYS SONAR Yes POWER OUTPUT 600 watt TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) CLEARVü built-in 260/455/800/1000/1200 kHz SIDEVü built-in 260/455/800/1000/1200 kHz PANOPTIX™ SONAR Yes LIVESCOPE Yes What's in the Box: ECHOMAP Ultra 122sv Power/data cable Bail mount with quick release cradle Protective sun cover GT56UHD-TM ransducer Hardware Documentation LIVESCOPE Plus Normalized SKU: 0100288101LSP

Garmin 010-02882-01LSP ChartplottersGarmin ECHOMAP™ Ultra 2 126sv 12" Chartplotter LIVESCOPE Plus with GT56UHD-TM Transducer; Includes Garmin Navionics+™ U.S. Inland & Coastal MappingModel: 010-02882-01\LIVESCOPE Plus SUPPORTS LIVESCOPE™ SONAR1 AND MORE WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2 CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.1LiveScope™ System sonar transducer sold separately 2Via one-to-one unit wireless connection only 3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters 4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotterSpecifications General DIMENSION 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm) WEIGHT 5.5 lbs (2.5 kg) WATERPROOF IPX7 TOUCHSCREEN Yes DISPLAY TYPE WXGA, IPS DISPLAY SIZE 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal) DISPLAY RESOLUTION 1280 x 800 pixels MOUNTING OPTIONS Bail or flush INPUT Touchscreen with Keyed Assist Maps & Memory ACCEPTS DATA CARDS 2 microSD cards WAYPOINTS 5000 TRACK POINTS 50,000 TRACKS 50 saved tracks NAVIGATION ROUTES 100 Sensors GPS Yes GLONASS Yes GALILEO Yes BEIDOU Yes HAS BUILT-IN RECEIVER Yes RECEIVER 10 Hz NMEA 2000 COMPATIBLE Yes NMEA 0183 COMPATIBLE Yes SUPPORTS WAAS Yes SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes Built-in Maps BUILT-IN AUTO GUIDANCE+ Yes GARMIN NAVIONICS+ INLAND & COASTAL Includes Garmin Navionics+™ U.S. Inland & Coastal Mapping TIDE TABLES Yes Optional Map Support BLUECHART G3 Yes BLUECHART G3 VISION Yes LAKEVü G3 Yes LAKEVü G3 ULTRA Yes GARMIN NAVIONICS+™ Yes GARMIN NAVIONICS VISION+™ Yes TOPO 100K Yes STANDARD MAPPING Yes GARMIN QUICKDRAW CONTOURS Yes Electrical Features POWER INPUT 9 to 18 Vdc TYPICAL CURRENT DRAW AT 12 VDC 2.5 A MAXIMUM CURRENT DRAW AT 12 VDC 5.0 A MAXIMUM POWER USAGE AT 10 VDC 36 W Connections NMEA 2000® PORTS 1 GARMIN MARINE NETWORK PORTS 2 (large connector) 12-PIN TRANSDUCER PORTS 12-pin scanning sonar ANT+ (CONNECTIVITY) Yes GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes Sonar Features DISPLAYS SONAR Yes POWER OUTPUT 600 watt TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) CLEARVü built-in 260/455/800/1000/1200 kHz SIDEVü built-in 260/455/800/1000/1200 kHz PANOPTIX™ SONAR Yes LIVESCOPE Yes What's in the Box: ECHOMAP Ultra 126sv includes Includes Garmin Navionics+™ U.S. Inland & Coastal Mapping Power/data cable Bail mount with quick release cradle Protective sun cover GT56UHD-TM transducer Hardware Documentation LIVESCOPE Plus Normalized SKU: 0100288201LSP

Garmin 010-02882-00LSP ChartplottersGarmin ECHOMAP™ Ultra 2 126sv 12" Chartplotter LIVESCOPE Bundle without Transducer; Includes Garmin Navionics+™ U.S. Inland & Coastal MappingModel: 010-02882-00\LIVESCOPE Plus SUPPORTS LIVESCOPE™ SONAR1 AND MORE WIRELESSLY NETWORK; SHARE SONAR, WAYPOINTS AND ROUTES2 CAPTURE SCREEN RECORDINGS TO SHARE FISH CATCHES MULTI-BAND GPS FOR IMPROVED POSITION ACCURACY With big, crisp, sunlight-readable touchscreen displays, these versatile chartplotters put a world of fishfinding capability at your fingertips. They’re available with built-in Garmin Navionics+™ mapping, and the transducer bundle adds Ultra High-Definition scanning sonars as well as CHIRP traditional sonar.The ECHOMAP Ultra 2 series supports the full lineup of LiveScope live-scanning sonar products (transducers sold separately).High-contrast vivid scanning sonar color palettes make it easier than ever to distinguish targets and structure.Bring a fresh new look and feel to your chartplotter with optional Garmin Navionics Vision+™ premium mapping (sold separately), featuring high-resolution relief shading, satellite imagery and more.If you have another compatible ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotter on your boat, you can wirelessly share information — such as sonar3, waypoints and routes — with them.1LiveScope™ System sonar transducer sold separately 2Via one-to-one unit wireless connection only 3LiveScope sonar cannot be shared wirelessly between two ECHOMAP Ultra 2 or ECHOMAP UHD2 chartplotters 4Requires the ActiveCaptain app on your compatible smartphone paired to your ECHOMAP Ultra 2 series chartplotterSpecifications General DIMENSION 13.4" x 9.0" x 3.9" (34.1 x 22.9 x 9.8 cm) WEIGHT 5.5 lbs (2.5 kg) WATERPROOF IPX7 TOUCHSCREEN Yes DISPLAY TYPE WXGA, IPS DISPLAY SIZE 10.3" x 6.4"; 12.1" diagonal (26.1 x 16.3 cm; 30.7 cm diagonal) DISPLAY RESOLUTION 1280 x 800 pixels MOUNTING OPTIONS Bail or flush INPUT Touchscreen with Keyed Assist Maps & Memory ACCEPTS DATA CARDS 2 microSD cards WAYPOINTS 5000 TRACK POINTS 50,000 TRACKS 50 saved tracks NAVIGATION ROUTES 100 Sensors GPS Yes GLONASS Yes GALILEO Yes BEIDOU Yes HAS BUILT-IN RECEIVER Yes RECEIVER 10 Hz NMEA 2000 COMPATIBLE Yes NMEA 0183 COMPATIBLE Yes SUPPORTS WAAS Yes SUPPORTS MULTI-BAND, MULTI-CONSTELLATION GPS Yes Built-in Maps BUILT-IN AUTO GUIDANCE+ Yes GARMIN NAVIONICS+ INLAND & COASTAL Includes Garmin Navionics+™ U.S. Inland & Coastal Mapping TIDE TABLES Yes Optional Map Support BLUECHART G3 Yes BLUECHART G3 VISION Yes LAKEVü G3 Yes LAKEVü G3 ULTRA Yes GARMIN NAVIONICS+™ Yes GARMIN NAVIONICS VISION+™ Yes TOPO 100K Yes STANDARD MAPPING Yes GARMIN QUICKDRAW CONTOURS Yes Electrical Features POWER INPUT 9 to 18 Vdc TYPICAL CURRENT DRAW AT 12 VDC 2.5 A MAXIMUM CURRENT DRAW AT 12 VDC 5.0 A MAXIMUM POWER USAGE AT 10 VDC 36 W Connections NMEA 2000® PORTS 1 GARMIN MARINE NETWORK PORTS 2 (large connector) 12-PIN TRANSDUCER PORTS 12-pin scanning sonar ANT+ (CONNECTIVITY) Yes GARMIN WI-FI NETWORK (LOCAL CONNECTION) Yes Sonar Features DISPLAYS SONAR Yes POWER OUTPUT 600 watt TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) built-in (single channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) CLEARVü built-in 260/455/800/1000/1200 kHz SIDEVü built-in 260/455/800/1000/1200 kHz PANOPTIX™ SONAR Yes LIVESCOPE Yes What's in the Box: ECHOMAP Ultra 126sv includes Includes Garmin Navionics+™ U.S. Inland & Coastal Mapping Power/data cable Bail mount with quick release cradle Protective sun cover 8-pin transducer to 12-pin sounder adapter cable Hardware Documentation LIVESCOPE Plus Normalized SKU: 0100288200LSP

Garmin 010-01740-03 ChartplottersGPSMAP® 1042xsv Keyed Networking Combo - U.S., Canada, Bahamas - No Transducer10-inch Chartplotter/Sonar Combo Is All-in-1 Solution 10-inch color display with keypad interface and multifunction control knob Includes transducer with high wide CHIRP, 250 W and CHIRP ClearVü/SideVü, 455/800, 350 W (also available without transducer) Preloaded U.S. LakeVü HD maps and BlueChart® g3 charts High-sensitivity internal 10 Hz GPS and GLONASS receiver Built-in single channel CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar and Panoptix™ support (transducers sold separately) Experience an advanced all-in-1 solution with our 10-inch GPSMAP 1042xsv keyed combo. Includes transducer for Garmin CHIRP sonar, CHIRP ClearVü and CHIRP SideVü (also available without transducer). It also has built-in support for Panoptix all-seeing sonar and premium Garmin sonar modules (transducers sold separately). Features a large, bright screen coupled with a quick and easy-to-use keypad interface with user-programmable keys and a multifunction control knob.Complete Network SharingGarmin Marine Network support allows sharing of sonar, maps, user data, dome or open-array radar, IP cameras and Panoptix sonar among multiple units. Includes NMEA 2000® network connectivity and NMEA 0183 support for autopilots, digital switching, weather, media, VHF, AIS and other sensors.Built-in ANT® ConnectivityEnjoy built-in ANT wireless connectivity directly to quatix® marine watches, Garmin Nautix™ in-view display, gWind™ Wireless 2 transducer, GNX™ Wind marine instrument and wireless remote controls. You can even stream and control a VIRB action camera from the chartplotter.The Ultimate Connected Boating AppBuilt in Wi-Fi gives you access to the free all-in-one ActiveCaptain™ app, so you can manage your marine experience from nearly anywhere. It creates a simple yet powerful connection between your compatible mobile device and your Garmin chartplotter, charts, maps and the boating community. Wherever you are, you’ll have unlimited access to your cartography, the ability to purchase new maps and charts and access to the Garmin Quickdraw™ Contours Community. Stay connected with smart notifications on your chartplotter screen. You can also plan a trip or prefish a lake, and ActiveCaptain will automatically sync with your chartplotter. Even get notifications for software updates, and decide when to download them on your device.Built-in Sonar CapabilitiesRight out of the box, you have access to some amazing sonar capabilities; all you have to add are transducers. Comes with built-in Garmin 1 kW CHIRP sonar, CHIRP ClearVü and CHIRP SideVü scanning sonar. It even supports Panoptix all-seeing sonar, premium Garmin sonar modules and a wide range of transducers (sold separately).Networked combos can share their internal sonar with any other device on the network. You can also choose what information is overlaid on the sonar screen; for example, radar, time of day or GPS speed.Heading, Position Refreshed 10 Times per SecondFast, responsive built-in 10 Hz GPS and GLONASS refreshes your position and heading 10 times each second to make your movement on the screen more fluid. It makes dropping up to 5,000 accurate waypoints — and finding your way back to them — quick and easy.Preloaded with Exceptional Garmin CartographyYou get both LakeVü HD inland waters mapping and BlueChart g3 coastal charts covering the coastal U.S. (East Coast, West Coast, Gulf of Mexico, U.S. and the Canadian side of the Great Lakes).LakeVü HD provides highly detailed freshwater maps that include 17,000+ U.S. lakes, rivers and reservoirs. Included in those are more than 13,000 HD lakes with 1-foot contours shoreline to shoreline. Upgrade to LakeVü HD Ultra with Max Def Lakes.BlueChart g3 provides basic coastal charts, tidal and current stations, depth contours, IALA nav symbols and fishing charts.Upgrade to Our Best Maps on the WaterTwo SD™ card slots provide expandable memory for accessory map purchases, such as LakeVü HD Ultra or BlueChart g3 HD or BlueChart® g3 Vision® HD, which adds Garmin patented Auto Guidance¹and other great features.Quickdraw Contours to Create Your Own HD MapsInstantly create personalized HD fishing maps on screen with 1-foot contours. Tailor them to fit your needs. These are your maps — you own them. Keep the data to yourself, or share it with the Quickdraw Community on Garmin Connect™.Built-in SailAssist FeaturesTo help you gain a wind-maximizing competitive edge, your chartplotter features a pre-race guidance page that shows your virtual starting line along with data fields showing laylines, time to burn before the start and a race timer that can be synchronized across all your networked Garmin GPS products. In addition, other supported sailing features include an enhanced wind rose, heading and course-over-ground lines, set and drift, true and apparent wind data and more.GPX Waypoints TransferIf you have waypoints, tracks or frequently used routes stored on another manufacturer’s GPS product — or on a Garmin handheld device — it’s easy to transfer those items to your new Garmin chartplotter via industry-standard GPX software formatting.In The Box GPSMAP 1042xsv chartplotter Power/data cable NMEA 2000 T-connector NMEA 2000 drop cable (2 m) 8-pin transducer to 12-pin sounder adapter cable Bail mount kit with knobs Flush mount kit with gasket Protective cover Trim piece snap covers Documentation Connections Garmin Marine Network™ Ports: 2 Transducer Ports: 1 (12 Pin) NMEA 2000® Port: 1 NMEA 0183 Input Ports: 1 NMEA 0183 Output Ports: 1 Video Input Ports:  1 BNC Video Output Ports: No Wireless Connectivity: Yes WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov. Normalized SKU: 0100174003UPC Code: 753759168322
