Scanstrut DS-HD6-BLK Cable GlandsDS-HD6-BLK Horizontal Double Cable Seal - BlackThis horizontal double entry cable seal from Scanstrut provides the ideal solution to waterproof cable routing and is perfect for installing solar panels, light bars, antenna and navigation light cables.  A tapered gland forms a watertight seal around the cable and a closed-cell foam gasket between the housing and the deck ensures a 100% watertight fitting. Features: Watertight installation - 100% waterproof with an IPX68 rating. Installs two (2) cables. Easy and reliable installation - each unit supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.  The low-profile construction is impact resistant and provides extra protection from water. Technical Specifications: Fits cable size (diameter) up to  - .23" (6 mm)   Height - .87" (22 mm) Width - 2.13" (54 mm) Color - Black Orientation - Horizontal Material - Plastic In the Box: Cable seal Mounting hardware Installation manual  *Sold as an Individual Normalized SKU: DSHD6BLKUPC Code: 5060114797987

Download LiteratureScanstrut DS-HD10 Cable GlandsHorizontal Double-Entry Cable Seal - Grey - Multiple Cable CombinationsThe DS-HD10 double horizontal cable seal was designed to eliminate time-consuming and sub-standard routing of cables for rooftop lights and electronics. Scanstrut’s seal helps users achieve a sleek, easy-to-fit, and 100% watertight installation every time. Features: Designed for two cables IP68 watertight seal Compact footprint - just 66.5mm (2.61 in.) W / 75.1mm (2.95 in.) L / 28.5 mm (1.12 in.) H Easy-fit cable routing that cuts down the installation time through wood, metal, and GRP Grey high-impact plastic Includes 316 stainless steel fixings and a waterproof 3M gasket The low-profile construction is impact-resistant and provides extra protection from water Scanstrut’s materials have been selected to be UV-stable and hard-wearing No messy sealant on bungs Install 2 Cables – Select Any Combination: 6mm x 2 7mm x 2 8mm x 2 9mm x 2 10mm x 2 Blank x 2 Normalized SKU: DSHD10UPC Code: 5060114799004Scanstrut DS-HD10 Literature Download Quick Reference Guide

Download LiteratureScanstrut DS-HD6 Cable GlandsHorizontal Double-Entry Cable Seal - GreyThe DS-HD6 double horizontal cable seal was designed to eliminate the time-consuming and sub-standard routing of solar panel cables. Scanstrut's seal helps you achieve a sleek, easy-to-fit, and 100% watertight installation every time. Perfect for routing two solar panel cables externally to internally on the roof of boats.Features: Designed for solar panel installations Compact footprint - just 54mm (W) 63mm (L) 24mm (h) Makes it perfect for installing it as close to the solar panel as possible Easy-fit cable routing that cuts down the installation time through wood, metal, and GRP IP68 watertight seal  Grey high-impact plastic  Includes 316 stainless steel fixings and a waterproof 3M gasket Clean and simple design The low-profile construction is impact-resistant and provides extra protection from water Captive nuts make for easy assembly and also allow for reliable repeat installations Scanstrut's materials have been selected to be UV-stable and hard-wearing No messy sealant on the bungs  Constructed from premium marine-grade materials Install 2 Cables – Select Any Combination:5mm (0.19”) and 6mm (0.23”) in any combination Normalized SKU: DSHD6UPC Code: 5060114798984Scanstrut DS-HD6 Literature Download Quick Reference Guide

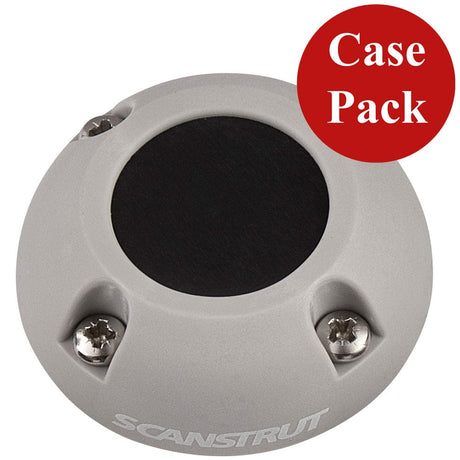

Download Literature Watch VideoScanstrut DS30-P-3 Cable GlandsDS30-P-3 Vertical Cable Seal *3-PackScanstrut premium IP68 waterproof cable seal provides easy-fit cable routing that cuts down your installation time and is the only guaranteed and proven watertight installation for your antenna and navlight cables. Features: Watertight installation - 100% waterproof with an IP68 rating Easy and reliable installation - each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.  No Need to Remove Cable Connectors - split-seal option does not require connector removal during installation.  Multi-Functional Dome Shape - the aesthetic dome-shaped profile provides a stronger, impact-resistant design and the outer dome provides an additional water shield. Technical Specifications: Fits cable size (diameter) - .35" to .55" (9 - 14 mm)   Fits connector size up to 1.18" (30 mm) in diameter  Height - .81" (20.5 mm) Color - Grey Orientation - Vertical Material - ASA Plastic In the Box: Cable seal Mounting hardware Installation manual  *Sold as a Three (3) Pack Normalized SKU: DS30P3Scanstrut DS30-P-3 Literature Download Quick Reference Guide Product BrochureScanstrut DS30-P-3 Video

Download LiteratureScanstrut DS16-SL-BLK Cable GlandsDS16-SL Starlink Compatible Cable Seal - BlackThe perfect cable seal to elevate your Starlink installation. This vertical entry cable seal, now compatible with Starlink, is IP68 certified and accommodates sizes from 4-6mm (0.16"-0.24"), and connectors up to Ø16mm (0.63").Designed with ease of installation, the split bung ensures no wire cutting is required. The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make assembly easy.Multi-Functional Dome ShapeThe aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.Watertight InstallationThe tapered bung is supplied with a closed base seal to form a 100% IP68-rated watertight seal.Easy & Reliable InstallationCaptive nuts make for easy assembly and allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.Split BungsThe split-seal option makes installation even easier, as it does not require the connectors to be removed during installation.Features: IP68 waterproof rated Made from premium marine-grade UV-stable materials Includes 316 stainless steel fixings and a waterproof 3M gasket Captive nuts ensure an easy and reliable repeat installation No messy sealant on bungs Split bungs for ease of installation Install connectors up to Ø30mm (1.18") in diameter Fully customizable with self-drill bung options 3 bungs- 1x blank, 1x 4mm, 1x 6mm Compatible with: Standard (Gen 3) / Standard, Enterprise (Gen 3)/ Enterprise & Mini  Specifications: Material: High Impact Plastic  Height: 19mm (0.75") Color: Black  Diameter of Cable Seal: 39mm (1.18") Diameter of Cable: 4 - 6mm (0.16"-0.24") Bungs: 1 x 4mm (0.16") / 1 x 6mm (0.23") /  1 x Self drill  Compatible with:  Standard (Gen 3) / Standard Enterprise (Gen 3) / Enterprise Mini Normalized SKU: DS16SLBLKUPC Code: 5060114799684Scanstrut DS16-SL-BLK Literature Download Quick Reference Guide Product Brochure

Download LiteratureScanstrut DS30-SL-BLK Cable GlandsDS30-SL Starlink Cable Seal - BlackThe perfect cable seal to elevate your Starlink installation. This vertical entry cable seal, now compatible with Starlink, is IP68 certified and accommodates an 8.5mm (0.34") cable and a connector of Ø30mm (1.18") in diameter.Designed with ease of installation, the split bung ensures no wire cutting is required. The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make assembly easy.Multi-Functional Dome ShapeThe aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.Watertight InstallationThe tapered bung is supplied with a closed base seal to form a watertight seal, ensuring an IP68-rated watertight seal.Easy & Reliable InstallationCaptive nuts make for easy assembly and allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.Split BungsThe split-seal option makes installation even easier, as it does not require the connectors to be removed during installation.Features: IP68 waterproof rated Made from premium marine-grade UV-stable materials Includes 316 stainless steel fixings and a waterproof 3M gasket Captive nuts ensure an easy and reliable repeat installation No messy sealant on bungs Split bungs for ease of installation Install connectors up to Ø30mm (1.18") in diameter Fully customizable with self-drill bung options 2 bungs - 1x blank & 1x 8.5mm (0.34”) Specifications: Material: High Impact Plastic  Height: 20.5mm (0.81") Color: Black Diameter of Cable Seal: 59mm (2.32") Diameter of Connector: Ø30mm (1.18") Bungs: 1 x blank / 1 x 8.5 mm (0.34") Compatible with: Flat High Performance / Performance (Gen 2) High Performance / Performance (Gen 1) Normalized SKU: DS30SLBLKUPC Code: 5060114799714Scanstrut DS30-SL-BLK Literature Download Quick Reference Guide

Download LiteratureScanstrut DS16-SL Cable GlandsDS16-SL Starlink Compatible Cable Seal - GreyThe perfect cable seal to elevate your Starlink installation. This vertical entry cable seal, now compatible with Starlink, is IP68 certified and accommodates sizes from 4-6mm (0.16"-0.24"), and connectors up to Ø16mm (0.63").Designed with ease of installation, the split bung ensures no wire cutting is required. The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make assembly easy.Multi-Functional Dome ShapeThe aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.Watertight InstallationThe tapered bung is supplied with a closed base seal to form a 100% IP68-rated watertight seal.Easy & Reliable InstallationCaptive nuts make for easy assembly and allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.Split BungsThe split-seal option makes installation even easier, as it does not require the connectors to be removed during installation.Features: IP68 waterproof rated Made from premium marine-grade UV-stable materials Includes 316 stainless steel fixings and a waterproof 3M gasket Captive nuts ensure an easy and reliable repeat installation No messy sealant on bungs Split bungs for ease of installation Install connectors up to Ø30mm (1.18") in diameter Fully customizable with self-drill bung options 3 bungs- 1x blank, 1x 4mm, 1x 6mm Compatible with: Standard (Gen 3) / Standard, Enterprise (Gen 3)/ Enterprise & Mini Specifications: Material: High Impact Plastic  Height: 19mm (0.75") Color: Grey  Diameter of Cable Seal: 39mm (1.18") Diameter of Cable: 4 - 6mm (0.16"-0.24") Bungs: 1 x 4mm (0.16") / 1 x 6mm (0.23") /  1 x Self drill  Compatible with:  Standard (Gen 3) / Standard Enterprise (Gen 3) / Enterprise Mini Normalized SKU: DS16SLUPC Code: 5060114799691Scanstrut DS16-SL Literature Download Quick Reference Guide Product Brochure

Download LiteratureScanstrut DS30-SL Cable GlandsDS30-SL Starlink Cable Seal - GreyThe perfect cable seal to elevate your Starlink installation. This vertical entry cable seal, now compatible with Starlink, is IP68 certified and accommodates an 8.5mm (0.34") cable and a connector of Ø30mm (1.18") in diameter.Designed with ease of installation, the split bung ensures no wire cutting is required. The aesthetic dome-shaped profile provides a stronger, impact-resistant design, and captive nuts in the base make assembly easy.Multi-Functional Dome ShapeThe aesthetic dome-shaped profile provides a stronger, impact-resistant, and additional water shield.Watertight InstallationThe tapered bung is supplied with a closed base seal to form a watertight seal, ensuring an IP68-rated watertight seal.Easy & Reliable InstallationCaptive nuts make for easy assembly and allow reliable repeat installations. Each unit is supplied with both pre-drilled and blank inner seals to make your installation as easy as possible.Split BungsThe split-seal option makes installation even easier, as it does not require the connectors to be removed during installation.Features: IP68 waterproof rated Made from premium marine-grade UV-stable materials Includes 316 stainless steel fixings and a waterproof 3M gasket Captive nuts ensure an easy and reliable repeat installation No messy sealant on bungs Split bungs for ease of installation Install connectors up to Ø30mm (1.18") in diameter Fully customizable with self-drill bung options 2 bungs - 1x blank & 1x 8.5mm (0.34”) Specifications: Material: High Impact Plastic  Height: 20.5mm (0.81") Color: Grey Diameter of Cable Seal: 59mm (2.32") Diameter of Connector: Ø30mm (1.18") Bungs: 1 x blank / 1 x 8.5 mm (0.34") Compatible with: Flat High Performance / Performance (Gen 2) High Performance / Performance (Gen 1) Normalized SKU: DS30SLUPC Code: 5060114799707Scanstrut DS30-SL Literature Download Quick Reference Guide Product Brochure

Seaview CG2090 Cable GlandsSeaview CG2090 Black 90 Degree Horizontal Cable SealModel: CG2090The Seaview horizontal (90 degree) cable seal is a streamlined, waterproof seal that has a horizontal orientation. This cable seal fits cable diameters up to 0.53" (13.5mm). It has a plastic housing that is strong and impact-resistant with a captive nut in the base to make it easy to assemble. The tapered rubber bung forms a watertight seal and is supplied with drill tubes allowing you to drill your own custom diameter seal. This is also supplied with a thick rubber base gasket. IPX6 / IPX8 tested and approvedThese Cable Seals will work with more than one cable as long as each cable has its own hole and there is at least .125" of rubber around each hole.bNormalized SKU: CG2090UPC Code: 850047035356

Download LiteratureSeaview CGM90 Cable GlandsBlack Plastic Horizontal Cable Seal for Multiple WiresThe Seaview horizontal cable seal (90-degree cable seal) is a streamlined, waterproof seal that has a horizontal orientation. This cable seal fits cable diameters up to 0.53” (13.5mm). Max connector size approx. 0.375"-0.5" (9.5 mm-12.7 mm) depending on connector length and type.It has a plastic housing (white or black) that is strong and impact-resistant, with a captive nut in the base to make it easy to assemble. The tapered rubber bung forms a watertight seal and is supplied with a drill tube allowing you to drill your own custom diameter seal. This is also supplied with a thick rubber base gasket. IPX6 / IPX8 tested and approved.These Cable Seals will work with more than one cable as long as each cable has its own hole and there is at least .125" of rubber around each hole. Normalized SKU: CGM90UPC Code: 850073256053Seaview CGM90 Literature Download Quick Reference Guide
