Raymarine Axiom 9 RV 9" MFD with Realvision 3D Sonar #E70367-00-NAG

  Watch Video

Raymarine E70367-00-NAG Fishfinders

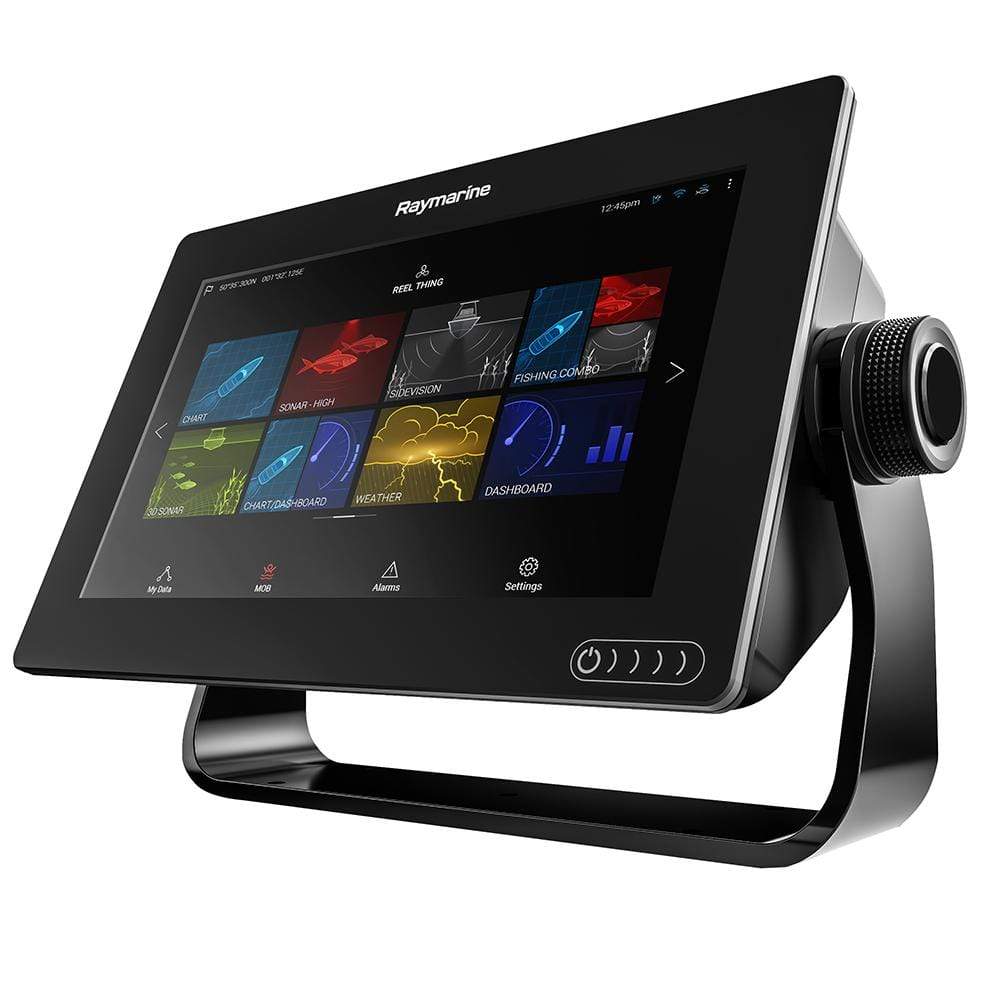

Axiom™ 9 RV 9" MFD with RealVision 3D™ Sonar & Navionics+ Chart - No Transducer

The Axiom™ is a powerful multifunction navigation system from Raymarine. The Axiom 9 RV features a 9-inch rugged all-glass touchscreen display and is powered by Raymarine's powerful LightHouse 3 operating system and a supercharged quad-core processor. Axiom 9 RV has built-in RealVision 3D™ sonar. Add the RealVision 3D transducer of your choice to make a complete system.

Axiom 9 RV is expandable so its capabilities can grow as needed. It supports the full range of Raymarine accessories including Quantum radar, CHIRP Sonar, FLIR thermal cameras, audio integration, instruments, cameras, and Evolution autopilot. Standard Wi-Fi and Bluetooth connectivity allows connection to the latest Raymarine apps for tablets and smartphones.

The Axiom 9 RV is bundled with Navionics+ Charts for North America with full coastal coverage for the USA and Canada, plus over 80,000 inland ponds, lakes and rivers. You can also make your HD contour maps with your depth sounder and Navionics SonarChart Live.

The Axiom 9 RV includes surface and trunnion mounting kits, mounting hardware, power/data cable, and installation instructions.

Features:

• Rugged All-Glass touch screen display delivers a big screen experience in a small footprint. Optically bonded for brighter colors, sharper contrast, and sunlight visibility

• LightHouse 3 OS is fast, fluid, and easy to learn. An uncluttered interface that is easily personalized for your style of navigating

• RealVision 3D™ Sonar Built-In - Go fishing like never before with life-like 3D imagery of structures and fish - an unprecedented view of the underwater world

• Powerful 4 Channel Sonar supports RealVision 3D, CHIRP DownVision, SideVision, High Frequency CHIRP, and 600 Watt (50/200 kHz) sonar

• Wide Spectrum CHIRP sonar transmits on 60 different frequencies for the most life-like sonar imagery and simply the best fish targeting

• Fast 10 Hz 72 Channel GPS/GLONASS Receiver for rapid position and heading updates and smooth on screen tracking

• Support for the best charts from Navionics and LightHouse Raster and Vector Charts sourced from leading map makers like NV Digital, Blue Latitude, and more

• Navigate Safely at Night with the optional FLIR M100 and M200 compact marine thermal cameras

• Quantum CHIRP Radar Ready - Superior solid state CHIRP radar delivers no compromise performance on long and extremely short range

• Marine Audio Control - Turn up the volume and control NMEA2000 compatible marine audio systems like Rockford Fosgate

• Ready to Network with Raynet Ethernet and NMEA2000. Connect multiple Axiom displays or expand with Quantum, HD radar, IP cameras, engine gauges, autopilots, instruments, and more

• Built-in Wi-Fi lets you to stream and control Axiom right from your smartphone or tablet. You can also sync Axiom's waypoints, routes, and charts with Navionics mobile app

Specifications:

Basemap = Yes
Card Format = Micro SD
Cartography - Preloaded = No
Cartography Brand = Navionics/C-Map
Cartography Type = Hotmaps/Navionics+/Gold/Platinum+/4D Max
Frequency = NONE
Included Transducer = NONE
Internal/External Antenna = Internal
Load Equivalence # (LEN) = NONE
Resolution (VxH) = NONE
Screen Size = 9"
Screen Type = Color
Speed/Temp = NONE
Touchscreen = Yes
Transducer Type = Not Included
Waterproof Rating = Waterproof
Watts RMS - Max = NONE
Waypoints/Routes = NONE
Weather Capable = Yes

Normalized SKU: E7036700NAG
UPC Code: 723193817735
