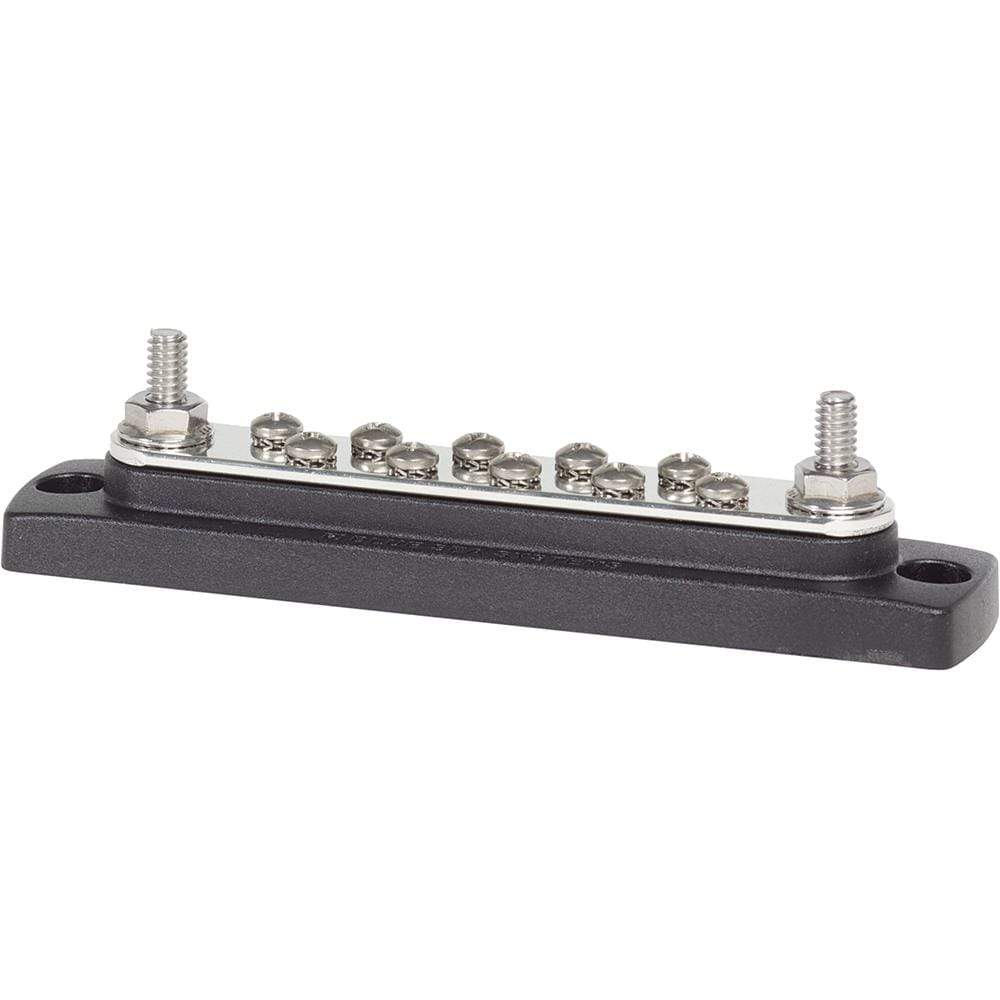

Blue Sea 150a Common BusBar 10 x #8-32 Screw Terminal #2301
Blue Sea System 2301 Bus Bars
150 Ampere Common BusBar 10 x #8-32 Screw TerminalPN: 2301
- Stud design provides direct terminal to bus contact for low resistant connection
- Stainless steel studs and screws allow high torquing for excellent electrical contact
- Tin-plated copper bus for maximum conductivity and resistance to corrosion
- UL 94-VO rated (self extinguishing) base material resists high heat
- Raised bus provides easy access to multiple wires on a single screw
- UL 94-VO rated base material resists high heat
- Captive star type lock washers for anti-rotation and eliminate handling of small, easily dropped parts
| Continuous Amperage | 130 Amperes AC 150 Amperes DC |
| Maximum Voltage Rating | 300 Volts AC 48 Volts DC |
| Bus Material | Tin-Plated Copper CDA 110/UNS11000 |
| Base Material | Glass Reinforced Polycarbonate |
| Cover material | Polycarbonate |
| Studs | Stainless Steel, 1/4"-20, torque 72 in-lbs, accepts 1/4" (M6) ring terminal |
| Screws | Stainless Steel, #8-32 screw terminal, torque 18 in-lbs, accepts #8 (M4) ring terminal |
| Weight | 0.28Lb |
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
BLUE SEA 2301 BUSBAR 10 GANG COMMON BUS
Normalized SKU: 2301
UPC Code: 632085023010
